4X Manual Zoom 2.0MP 4-in-1 HD Analog Dome Camera

• High-Resolution Sensor: The camera is equipped with a 1/2.7-inch 2.19MP HD CMOS sensor that captures crystal-clear images. It also includes D-WDR, 3DNR, and OSD adjustments to ensure optimal picture quality in various lighting conditions.

• Powerful Night Vision: Featuring 28 high-intensity SMD infrared LEDs, the camera provides up to 30m/100ft IR Night Vision Distance. The 2.0 Megapixel 1/3 inch CMOS sensor and 2.8-12mm vari-focal lens with a 90-degree viewing angle further enhance the camera's capabilities for clear night-time surveillance.

• Enhanced Imaging Technology: Built-in with an IR-Cut filter, the camera delivers true color images during the day and clear black and white images at night, ensuring accurate color reproduction and high-resolution surveillance.

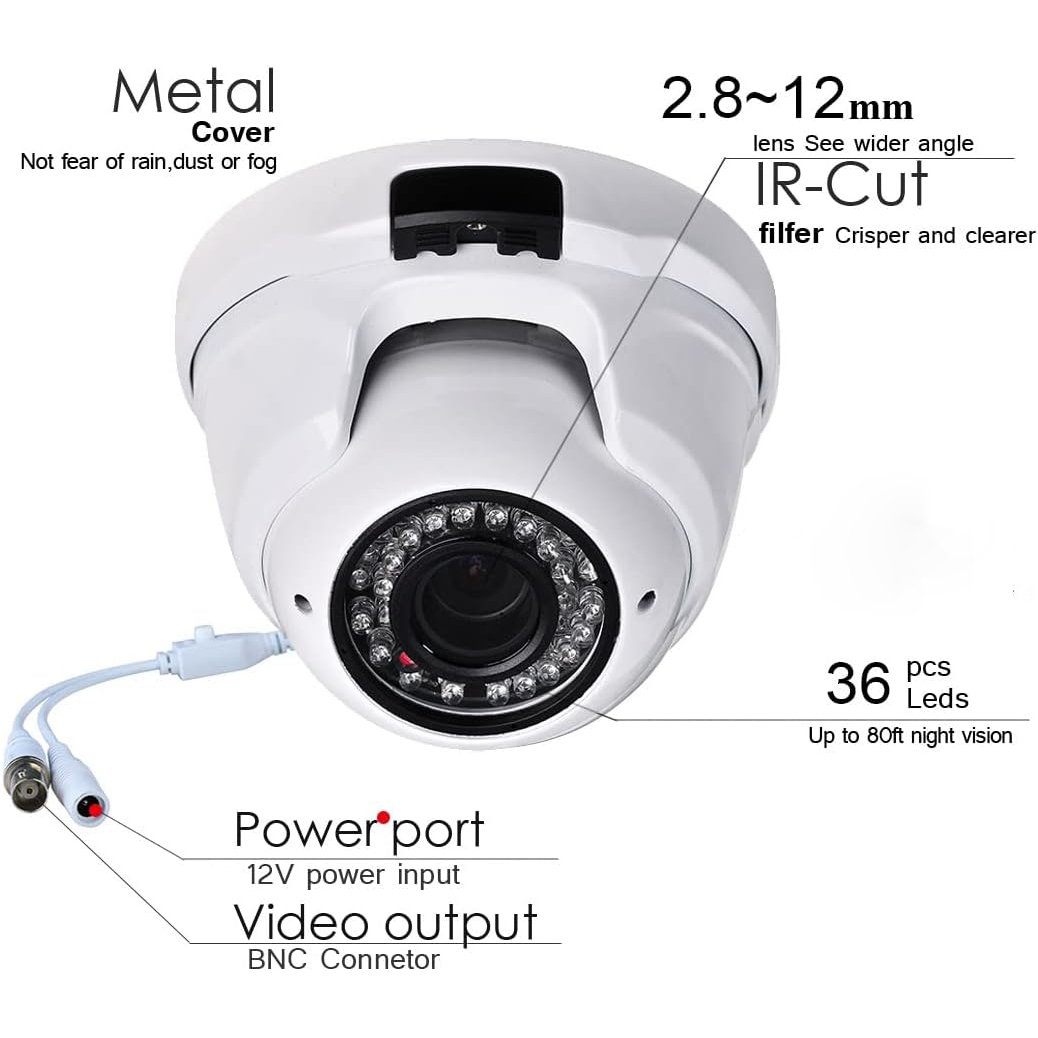

• Durable Construction: The camera is housed in a vandal-proof dome and metal casing, providing robust protection against physical damage and suitable for both indoor and outdoor environments.

• Advanced Video Adjustments: It includes Auto Gain Control (AGC), Auto Electronic Shutter (AES), and Back Light Compensation (BLC), which work together to maintain the best possible image quality regardless of the lighting conditions.

• Additionally, the camera offers four video output modes: 1080P HD-TVI, 1080P HDCVI, 2.0MP AHD, and 960H, providing flexibility for different recording setups. It is important to note that this dome camera requires a DVR for video recording, and the video mode can be switched to match the capabilities of the used DVR.

Main Features:
Super Clear High Resolution 2.0MP 1920 x 1080 Pixel
4-in-1 AHD/TVI/CVI/Analog Hybrid Metal bullet camera
High-Performance 130ft Night Vision
Built in HAD IR-CUT, More Clear/More Real
Vari-focal 2.8-12mm Lens, wide view angle
With OSD Menu
Support Coax Control
Cameras provide color video during the daytime, black and white at night

Specifications:
Image Sensor: 1/3”SONY IMX323 2.0Megapixel CMOS Sensor
DSP: FH8536H
Effective Pixels: 1920 x 1080, 2.0MP
Illumination: 0Lux (when IR on)
S/N Ratio: More than 58dB
Electronic Shutter: 1/25s~1/50,000s , 1/30s~1/60,000s
Lens: 2.8-12mm vari-focal lens
IR distance: 24pcs SMD IR LED, 40M/130Feet
Day/Night: Auto(ICR)/Color/B/W
OSD Menu: Support
Weather-proof Level: IP66
Power Source: DC12V(Power adapter not included)
Video Output Mode: AHD/TVI/CVI/CVBS (BNC)
Dimension: 270(L) x 90(W) x 85(H)mm

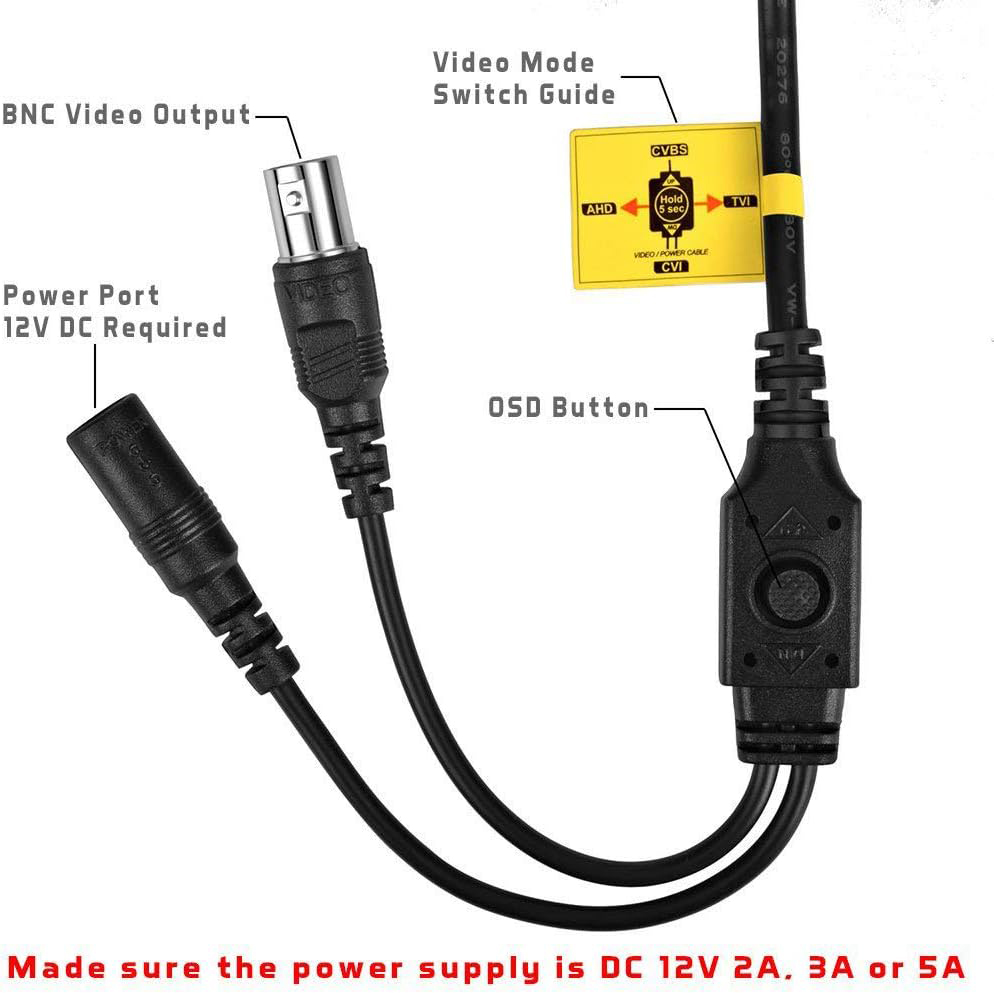

★ How to Connect Eversecu 2MP 4 in 1 Camera with 2MP AHD/TVI/CVI DVR? ★
Camera Default Mode is AHD Camera (for AHD DVR), so if your system is HD-TVI/CVI, pls FIRST adjust the camera to the SAME mode with your system by OSD button, or else no pictures will be showed or image quality may be not good
1) Hold the OSD button to left 5 seconds, change to Analog/CVBS
2) Hold the OSD button to right 5 seconds, change to AHD
3) Hold the OSD button up 5 seconds, change to HD CVI
4) Hold the OSD button down 5 seconds, change to HD TVI
