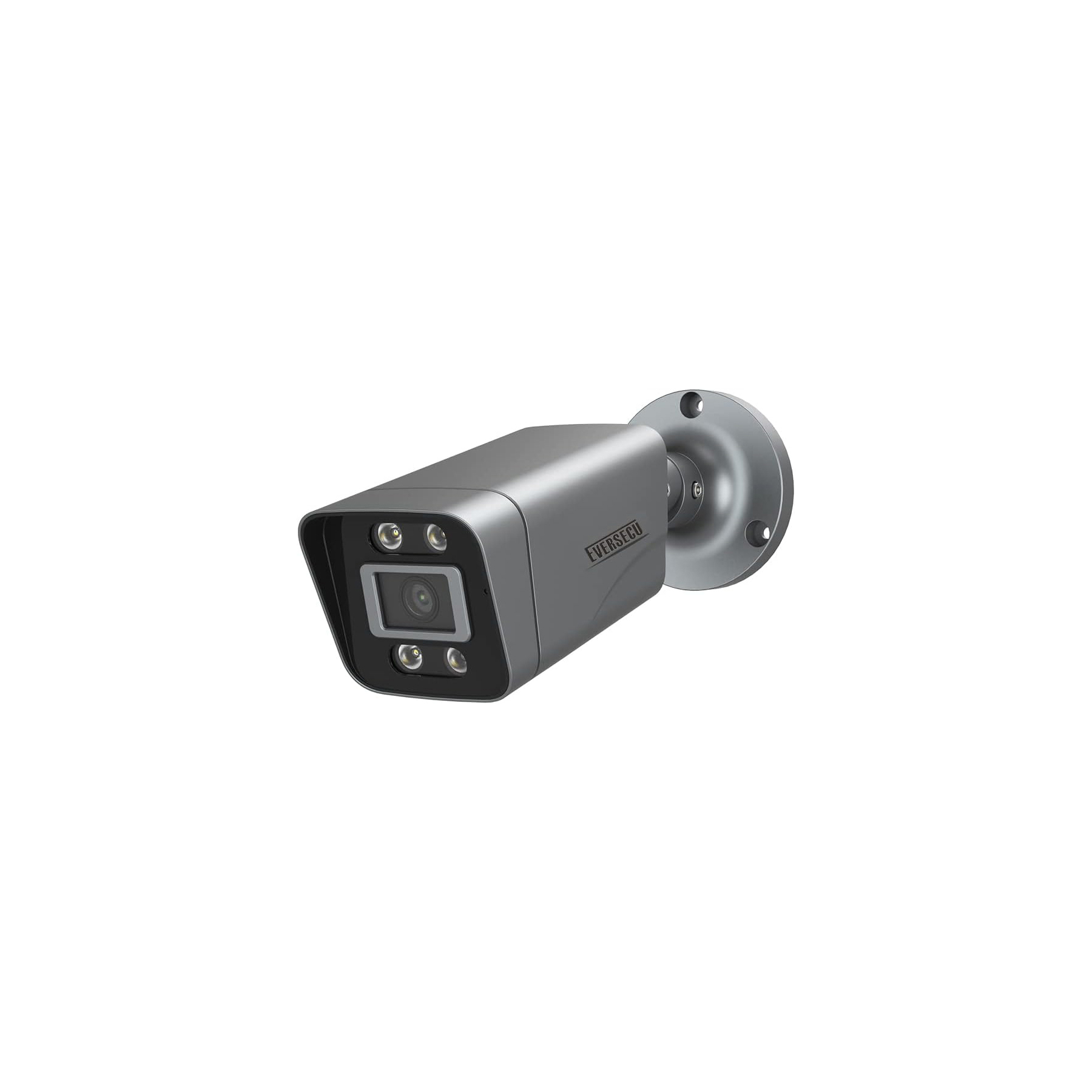

2MP (HD-TVI/AHD/CVI/Analog) 4-in-1 CCTV Camera

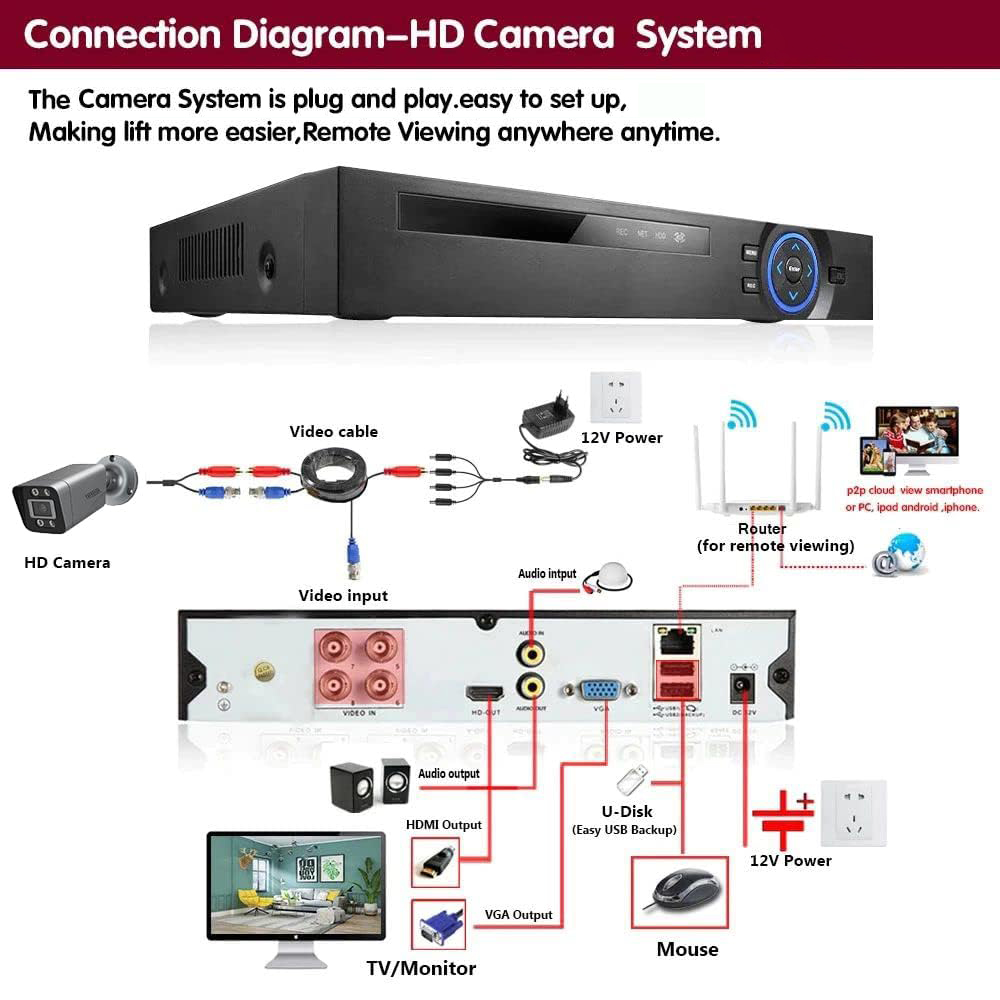

• Please note this camera only workes with AHD/CVI/TVI DVR or Analog DVRs. Power supply, coaxial video cable and DVR are NOT INCLUDED but REQUIRED. If you want to by a DVR, please search ASIN: B07DQ7T573

• <b> CRYSTAL CLEAR IMAGE:</b> 1/2.7-inch 2.19MP HD CMOS sensor for crisp image. D-WDR, 3DNR and OSD adjustments for optimal picture quality in any lighting condition.

• <b> ENHANCED NIGHT VISION: </b> Latest anti-reflection black film technology and upgraded SMT Led with 65-100 feet IR Range for superior image at night.

• <b> GREAT LOW LIGHT IMAGE:</b> HD CMOS Image sensor with NIR and LOW ILLUMINATION technology applied, it performs great image with little ambient light.

• <b> 4 MODES VIDEO OUTPUT: </b> 1080P HD-TVI, 1080P HDCVI, 2.0MP AHD and 960H.

Specifications:
Image Sensor: 1/2.9-inch Exmor CMOS image sensor
Effective Pixel: 1920*1080 in HD mode; 960H in Analog Mode
Lens: 3.6 mm fixed megapixel lens
Infrared LED: 14µ x 36 pieces with 65-100 feet infrared distance based on environment.
Camera Feature: Day/Night; OSD menu language; Auto/Manual White Balance; Gain control; Noise Reduction; Picture Adjustment; DWDR; OSD support; UTC support (HD mode)
Housing: Metal, IP66
IR-cut Filter: Yes
Power Source: DC12V±10%; 700mA Operation Temperature: 14F-122F, RH95% Max

This 4-in1 camera is fully compatible for the all the HD DVRSTroubleshooting
Q: Video Loss appears where the image from my camera should be displaying on my DVR?
A: 1.Check the extension cable (power and video) is securely connected to the camera.

2.Check the video output from the camera is securely connected to a video input channel on the DVR.

3.Check the power from the camera is securely connected to a power supply.

4. The camera mode do not match your DVR.there is 2 ways to setup .
(1) Press OSD Joystick “DOWN” 5 seconds,if still no picture come, try to press “LEFT” “RIGHT””UP” for 5 second, till the signal matching your DVR.
(2) Make sure the signal of your DVR, Use OSD Joystick to change the mode of the camera according to your DVRs video Mode.
