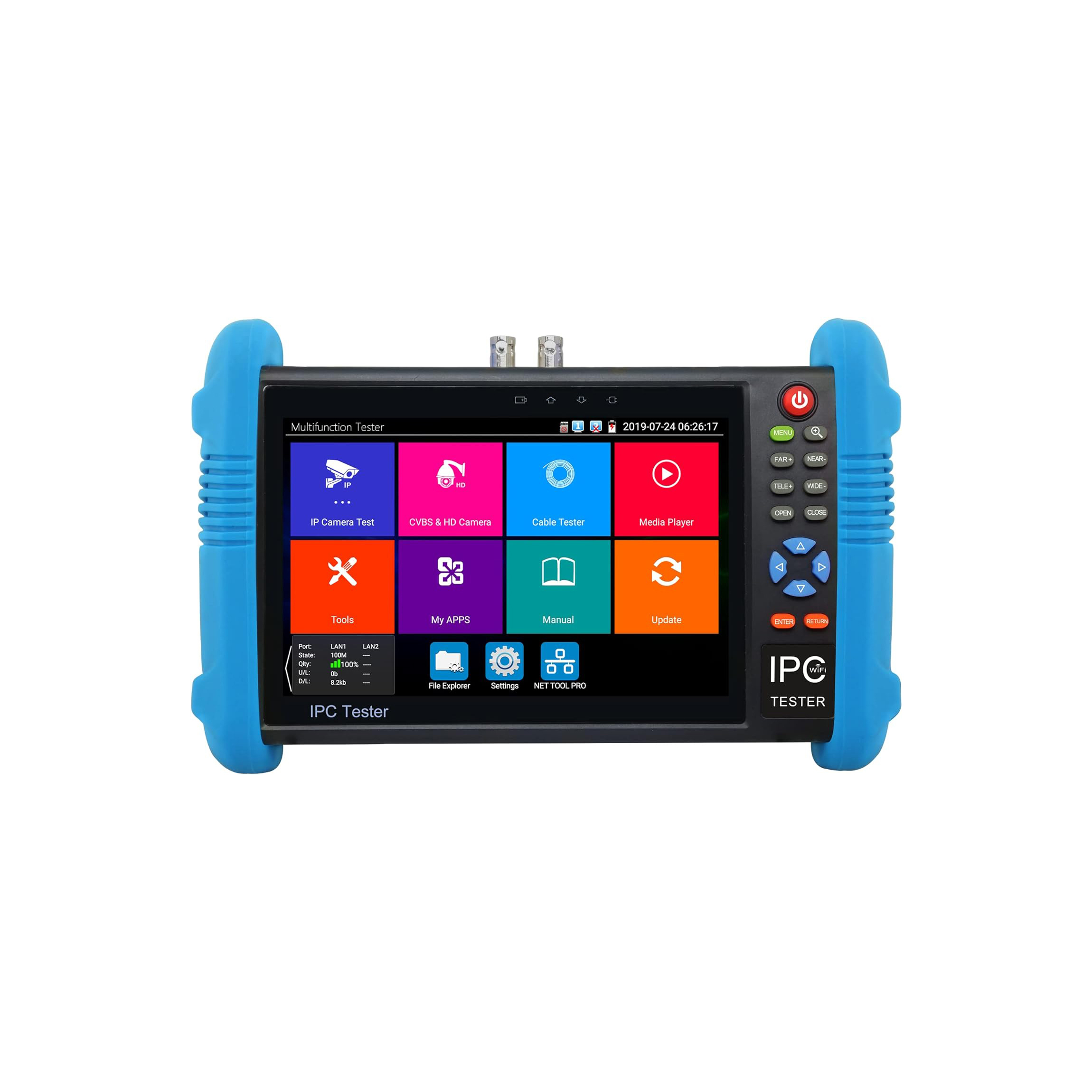

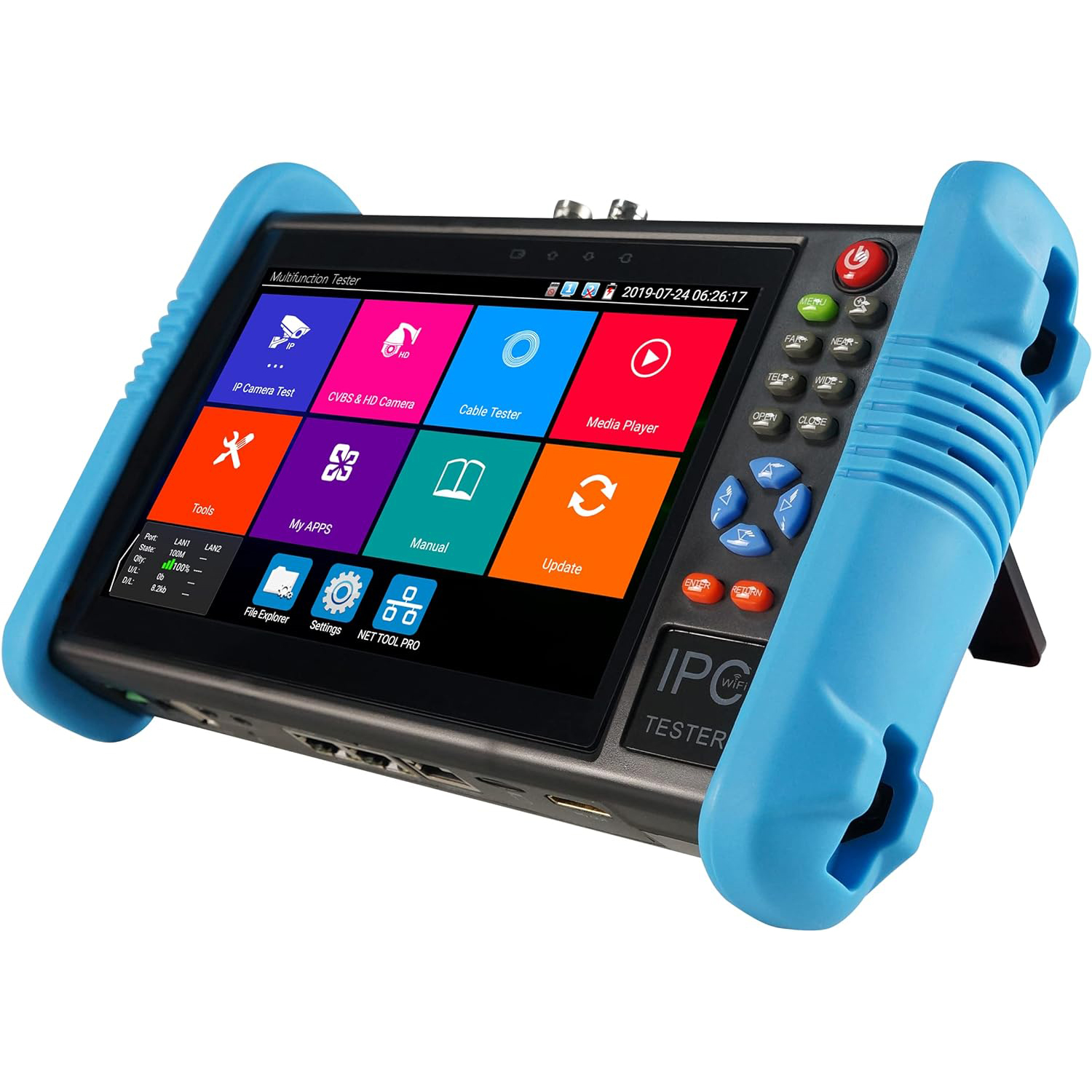

7 Inch Touch Screen 5 in 1 CCTV Tester
7 inch IPS touch screen 4K H.265 IP Full 4K All in One IPC Tester Support Up to 8MP TVI/4MP CVI/5MP AHD Cameras test, Support H.265 & H .264 Up to 4K IP Camera test, Support CVBS camera test and PTZ control, H.265 & H .264 IP, 4K video display via mainstream
8MP TVI/CVI Test, 5MP AHD Test, Auto log in and display image, create testing report, Support multi-brands cameras test, enter the app, input username and password to test, With IPC TEST, HIK test tool, DH test tool,IP discovery, just by one key to detect all network cameras IP address,Rapid video, just by one key to detect all network cameras and auto display
DC12V 3A power output, PoE DC48V power output, Max power 24W, support 10/100/1000M Ethernet test, network state and traffic display, PING test, IP address scan, port flashing etc, With Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot
●7 inch IPS touch screen, 1280*800 resolutions
● H.265 & H .264 IP, 4K video display via mainstream

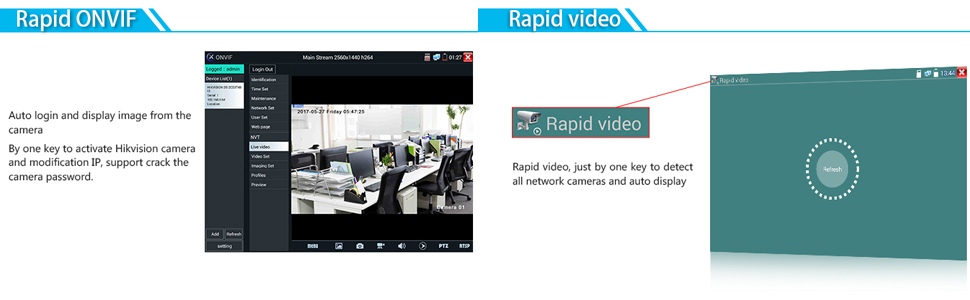

● Rapid Network Cameras Test, Auto log in and display image, create testing report
● Support Third-Party cameras test, enter IP Camera test app, input username and password to test
● CVBS camera test and PTZ control
● IPC TEST, HIK test tool, DH test tool
● Doesn't support SDI
● 8MP TVI test,3840 x 2160P 15 fps,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu *
●8MP AHD test, 3840 x 2160P 15 fps,4xzoom, video record & playback, coaxial PTZ & call OSD menu *
●8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
● CVBS camera test and PTZ control
●Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement*
●DC12V/2A power output, camera can be powered from DC 12Votage
● 48V PoE power output power
●Rapid video, just by one key to detect all network cameras and auto display
●Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
● CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable
● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
Cable test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

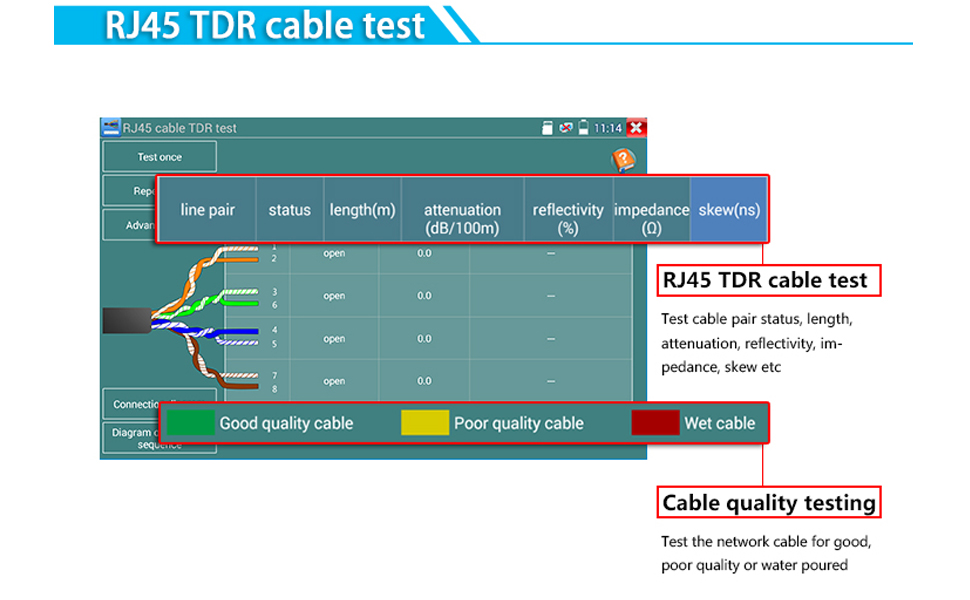

● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
● Cable tracer, search BNC cable, network cable and telephone cable from the mess cables *
●TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement
