4 in 1 CCTV Tester

• The new AHD/TVI/CVI/CVBS Camera tester is developed for AHD/TVI/CVBS camera device, with Video display, DC12v output power, Audio test, 480*272 resolution, and multilingual OSD

• It Supports 720P & 960P & 1080P & 3mp & 4mp & 5mp AHD/TVI cameras, and 3mp/4mp HD CVI Cameras

• The brightness and contrast and color saturation can be adjusable,It also can be used for charging mobile phone.

• The new tester designed with easy operation and portability makes it simple for a cctv technician or installer to install and maintain CCTV systems, improving work efficiency by reducing time in the field

Description:
Equipped with 2600mAh Li-polymer battery, which has RoHS & CE certification
Device can work 7 hours after a single charge
12V 1A Output function can be helpful when no external power supply for the camera
Video test Automatically identification with access AHD/TVI/CVI/CVBS Video signal
Automatic identification NTSC/PAL Format image signal
2600mAh li-polymer battery
High capacity li-polymer battery, charge time 4 hours, and work time 11 hours
DC12 1A power output
Provide camera power temporary
Network Cable test

Power saving features:
Low power consumption, automatic power off, Real-time display of battery level
Language settings: Chinese, English user selectable
Auto power off: Disable / 5-60 minutes

Specification:
Video System: NTSC/PAL Automatically recognize
Display screen: 4.3inches
Display screen Resolution: 480*272P resolution
Screen adjustment: Video display brightness, contrast saturation adjustable
Video input: 1 channel BNC Video IN
12V power output 1A DC: Audio test
Input audio signal, and played on the internal speaker
External power supply: DC 5V(1A)
Battery-powered: Built-in 3.7V li-polymer battery, Capacity 2600mAh
Charge time: 4hours
Battery working time 7 hours
Working Temperature: -20C---+70C
Humidity: 30%-90% Rh
Dimension: 120mm x 80mm x 40mm,150g

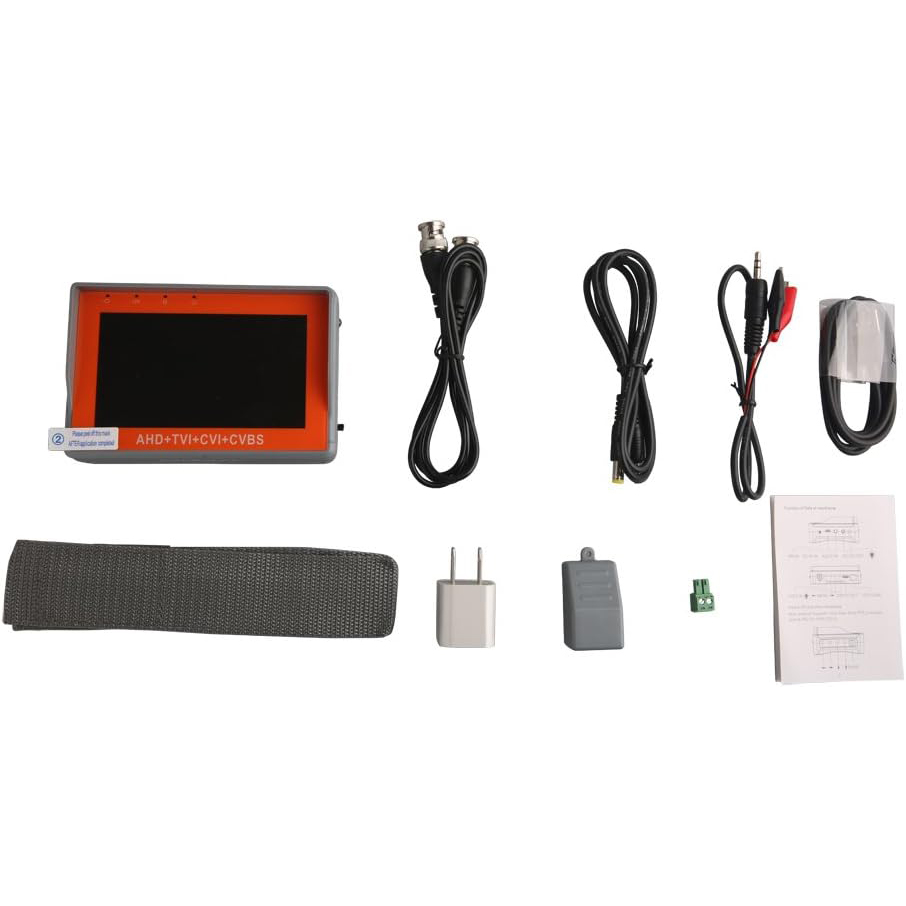

Package Included:
1 x Main unit
1 x Transformers
1 x AHD power cord
1 x English manual
1 x Video cable
1 x Data cable
Note: This model can't support PTZ contorl,if you need this function
