Anti interference PSU DC12V 32/16CH power distribution box-CE

WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
$10.00
Model：CP1216-32A-4K
Quantity
ADD TO CART
BUY NOW
马上咨询
Prev: Metal case PSU DC12V 10A 9CH power distribution box-UL listed
Next: SMPS UPS DC12V10A Switching mode power supply-CE listed
Detail
DC12V 32A 16CH 384W output
Specily designed for 4K HD devices
Individual 12V2A outputs
Independent GND access avoid common grounding interference

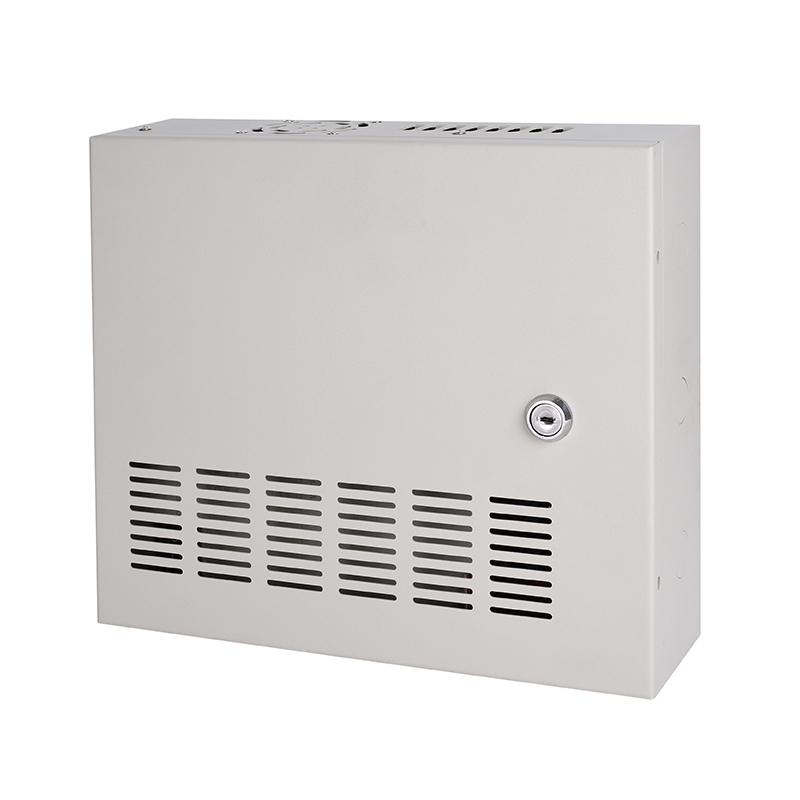

Heavy duty steel case painted insulation coating
Build-in energy saving smart cooling fan
Regular protection OVP, SCP, OCP
CE approved
ModelCP1216-32A-4K
InputVoltage Range85 ～ 264 VAC
Frequency Range47 ～ 63 Hz
Efficiency≥85%@Rated voltage
AC Current13A
Inrush CurrentCold start:≤40A@115Vac；≤70A@230Vac
Leakage CurrentIP～OP Leakage current：≤0.25mA，Touch current＜0.1mA@264Vac
OutputRated VoltageDC 12V
Rated Current32A
Voltage Adjustment RangeDC 12V ～ 15V
Current Range0～32A
Rated Power 384W
Total Output Channel16路
Fuse type2A PTC/路
Ripple & Noise≤100mVpk
Voltage Tolerance±3%
Line Regulation≤0.1%
Load Regulation≤0.1%
Setup,Rise,Hold Up Time230Vac Full load：≤3S,≤3S,≥10mS
ProtectionOver load110% ～ 150%@Rated power.PTC protection mode，recovers automatically after fault condition is removed.
Over Voltage110% ～ 130%@Rated voltage.Hiccup mode, recovers automatically after fault condition is removed.
Over Current110% ～ 150%@Rated current.PTC protection mode，recovers automatically after fault condition is removed.
Short CircuitNo damage,PTC protection mode，recovers automatically after fault condition is removed.
EnvironmentWorking Temp.,HumidityTemp.：-10℃ ～ +40℃ ；Humidity：10% ～ 95% RH, Non-condensing
Storage Temp.,HumidityTemp.：-20℃ ～ +85℃ ；Humidity：10% ～ 95% RH, Non-condensing
Temp.Coefficient≤0.03V/℃（0℃ ～ +45℃）
Vibration10 ～ 500Hz，2G 10min./1cycle, 60min. each along X,Y,Z axes
Safety & EMCSafety StandardsCE：IEC 62368-1；IEC 60950-1
Withstand VoltageIP～OP: ≥3KVac
Isolation ResistanceIP～OP: ≥100MΩ@500Vdc,25℃,70% RH
EMCFCC/Part 15 ;EN55032、EN55035；EN/IEC61000
OthersProduct Size254*288.8*82.4mm
Packing4pcs/carton 51*34*32CM
CertificateCE
Warranty2 Years
