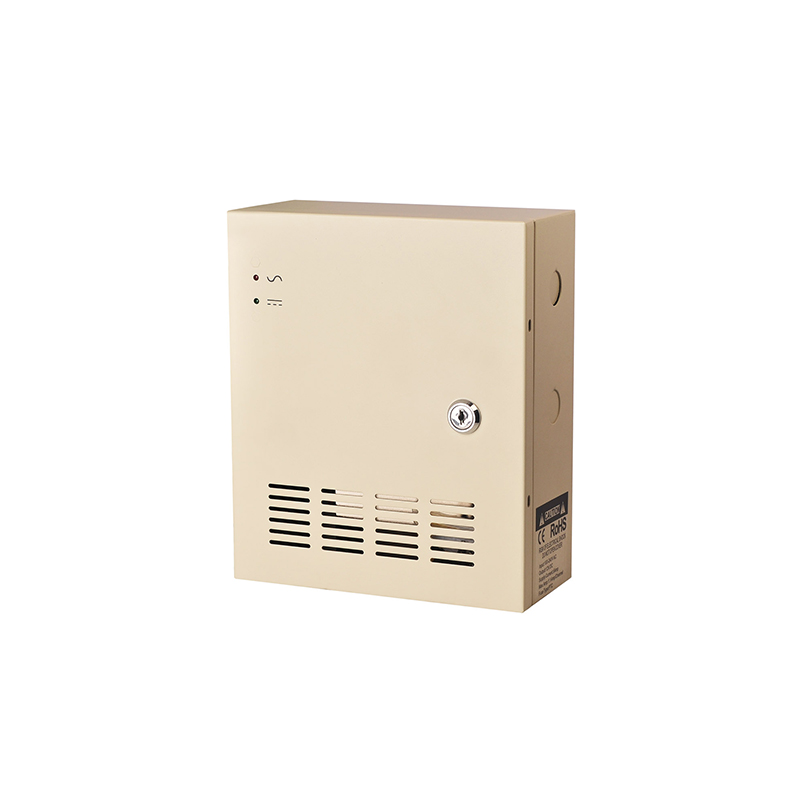

Metal case PSU DC12V5A4CH power distribution box-CE listed

WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
$10.00
Model：HT1204-5A
Quantity
ADD TO CART
BUY NOW
马上咨询
Prev: 1.5U rackmount DC12V 10A 18CH power supply -CE listed
Next: SMPS DC12V5A Switching mode power supply-CE listed
Detail
DC12V 5A 4CH 60W output
Resettable PTC fuse rated 2A
Heavy duty steel case painted insulation coating
Indicators for AC input and DC output
Easy knocked wire connecting holes
Regular protection OVP, SCP, OCP
CE/FCC approved


ModelHT1204-5A
InputVoltage Range90 ～ 264 VAC
Frequency Range47 ～ 63 Hz
Efficiency≥86%@Rated voltage
AC Current1.6A
Inrush CurrentCold start:≤30A@115Vac；≤50A@230Vac
Leakage Current＜0.75mA@264Vac
OutputRated VoltageDC 12V
Rated Current5A
Voltage Adjustment RangeDC 12V ～ 15V
Current Range0～5A
Rated Power60W
Total Output Channel4CH
Fuse type2A PTC/CH
Ripple & Noise≤240mVpk
Voltage Tolerance±3%
Line Regulation≤0.1%
Load Regulation≤0.1%
Setup,Rise,Hold Up Time230Vac Full load：≤3S,≤3S,≥10mS
ProtectionOver load120% ～ 150%@Rated power.PTC protection mode，recovers automatically after fault condition is removed.
Over Voltage120% ～ 130%@Rated voltage.Hiccup mode, recovers automatically after fault condition is removed.
Over Current120% ～ 150%@Rated current.PTC protection mode，recovers automatically after fault condition is removed.
Short CircuitNo damage,PTC protection mode，recovers automatically after fault condition is removed.
EnvironmentWorking Temp.,HumidityTemp.：-10℃ ～ +40℃ ；Humidity：10% ～ 95% RH, Non-condensing
Storage Temp.,HumidityTemp.：-20℃ ～ +85℃ ；Humidity：10% ～ 95% RH, Non-condensing
Temp.Coefficient≤0.05V/℃（0℃ ～ +45℃）
Vibration10 ～ 500Hz，2G 10min./1cycle, 60min. each along X,Y,Z axes
Safety & EMCSafety StandardsCE：EN/IEC 62368-1；EN/IEC 60950-1
Withstand VoltageIP～OP: ≥1.5KVac
Isolation ResistanceIP～OP: ≥100MΩ@500Vdc,25℃,70% RH
EMCFCC/Part 15 ;EN55032、EN55035；EN/IEC61000
OthersProduct Size201.5*238.5*61.5mm
Packing10pcs/carton, 51.5*35.5*23CM
CertificateCE,FCC
Warranty1 Year
