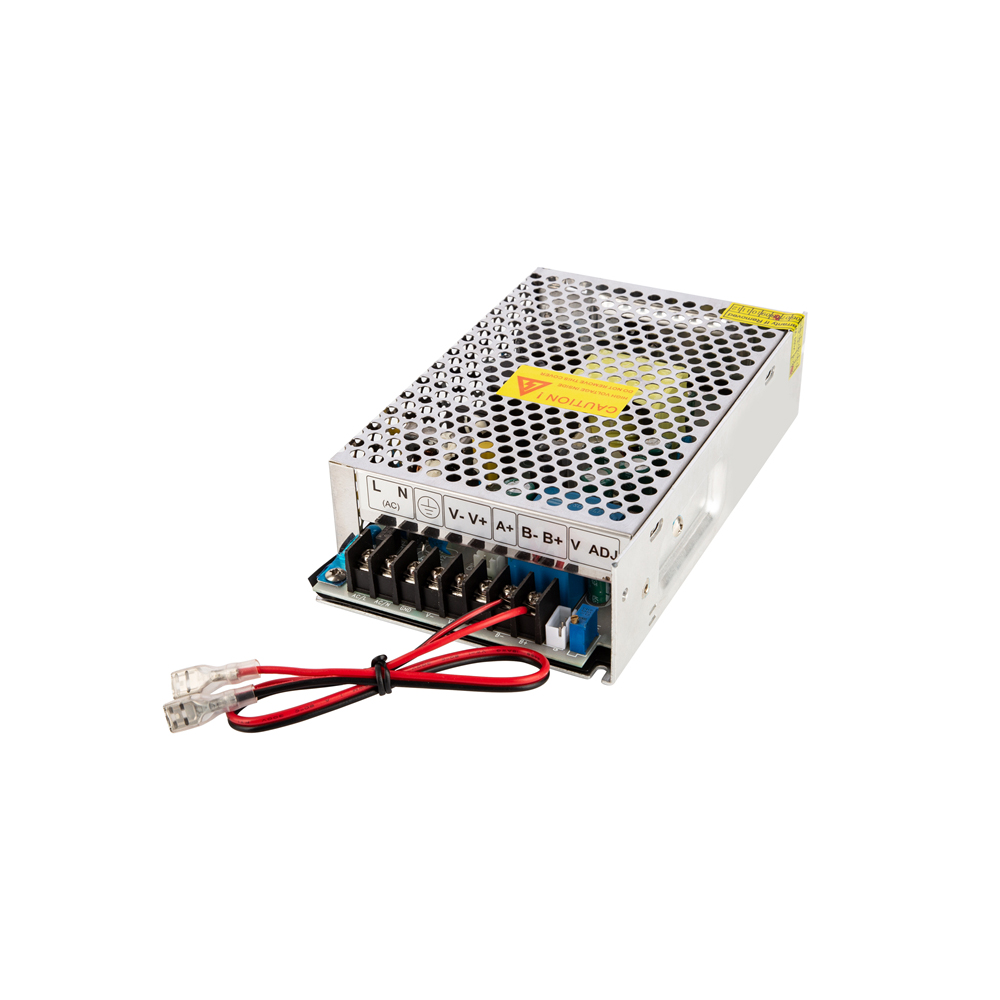

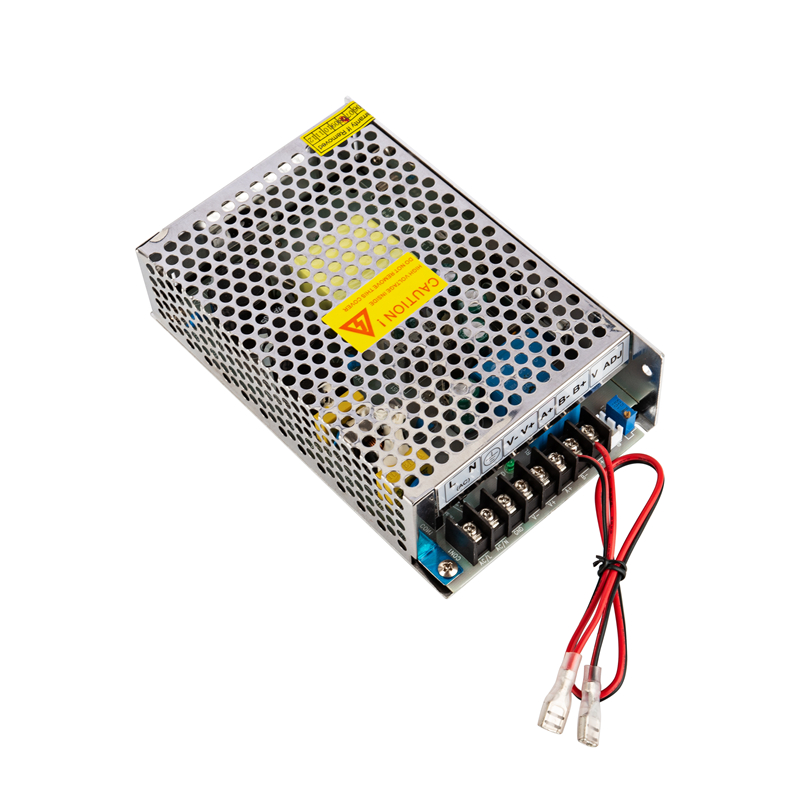

SMPS UPS DC12V5A Switching mode power supply-CE listed

WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
$10.00
Model：HTD-6OW-B
Quantity
ADD TO CART
BUY NOW
马上咨询
Prev: 1.5U rackmount DC12V 10A 5CH power supply -CE listed
Next: Waterproof power box
Detail
DC12V 5A 60W output
Support battery back up DC12V Lead-acid batteries
Independent DC13.8V battery charging voltage
Battery reverse polarity protection, over charging/discharing protection
Output voltage adjustable DC11.78V-15V
Screw type input/output connection
Regular protection OVP, SCP, OCP
ModelHTD-60W-B
InputVoltage Range90 ～ 264 VAC
Frequency Range47 ～ 63 Hz
Efficiency≥85%@Rated voltage
AC Current1.6A
Inrush CurrentCold start：≤30A@115Vac；≤50A@230Vac
Leakage Current＜0.75mA@264Vac
OutputRated VoltageDC 12V
Rated Current5A
Voltage Adjustment RangeDC 12V ～ 15V
Current Range0～5A
Rated Power60W
Ripple & Noise≤120mVpk
Voltage Tolerance±3%
Battery Charging Voltage13.8V
Battery Charging Current0 ～ 0.3A
Line Regulation≤0.1%
Load Regulation≤3%
Setup,Rise,Hold Up Time230Vac Full load：≤3S,≤3S,≥30mS
ProtectionOver load120% ～ 150%@Rated power. Hiccup mode, recovers automatically after fault condition is removed.
Over Voltage120% ～ 130%@Rated voltage. Hiccup mode, recovers automatically after fault condition is removed.
Over Current120% ～ 150%@Rated current. Hiccup mode, recovers automatically after fault condition is removed.
Short CircuitNo damage,Hiccup mode, recovers automatically after fault condition is removed.
Battery ProtectionUndervoltage protection
EnvironmentWorking Temp.,HumidityTemp.：-10℃ ～ +40℃ ；Humidity：10% ～ 95% RH, Non-condensing
Storage Temp.,HumidityTemp.：-20℃ ～ +85℃ ；Humidity：10% ～ 95% RH, Non-condensing
Temp.Coefficient≤0.05V/℃（0℃ ～ +45℃）
Vibration10 ～ 500Hz，2G 10min./1cycle, 60min. each along X,Y,Z axes
Safety & EMCSafety StandardsCE：EN/IEC 62368-1；EN/IEC 60950-1
Withstand VoltageIP～OP: ≥3KVac
Isolation ResistanceIP～OP: ≥100MΩ@500Vdc,25℃,70% RH
EMCFCC/Part 15 ;EN55032、EN55035；EN/IEC61000
OthersProduct Size159.5*98*41.9mm
Packing50pcs/carton, 56*39.8*23.1CM
Warranty2 Years
