DC12V 5A PSU Designed for access control systems -CE listed

WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
$10.00
Model：CP12-5A-EG
Quantity
ADD TO CART
BUY NOW
马上咨询
Prev: SMPS DC12V10A Switching mode power supply-CE listed
Next: Adapter DC12V 1A wallmount- CE
Detail
DC12V 5A 60W output
For access Control system
0-45s unlock delay time
Support both Normaly Open / Normaly Close lock
Support battery back up DC12V Lead-acid batteries(inner space fit 7Ah size)

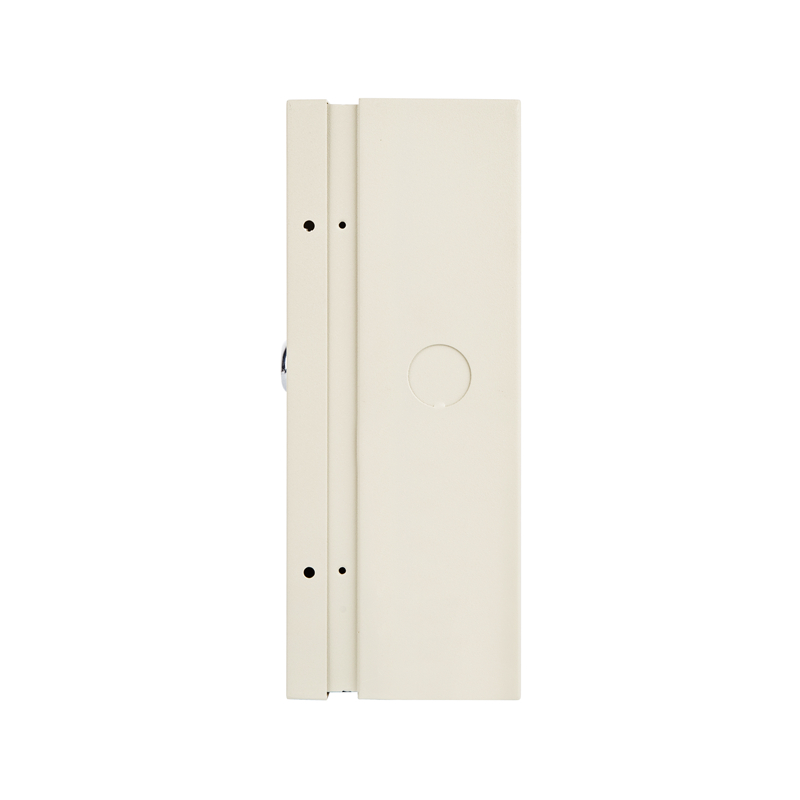

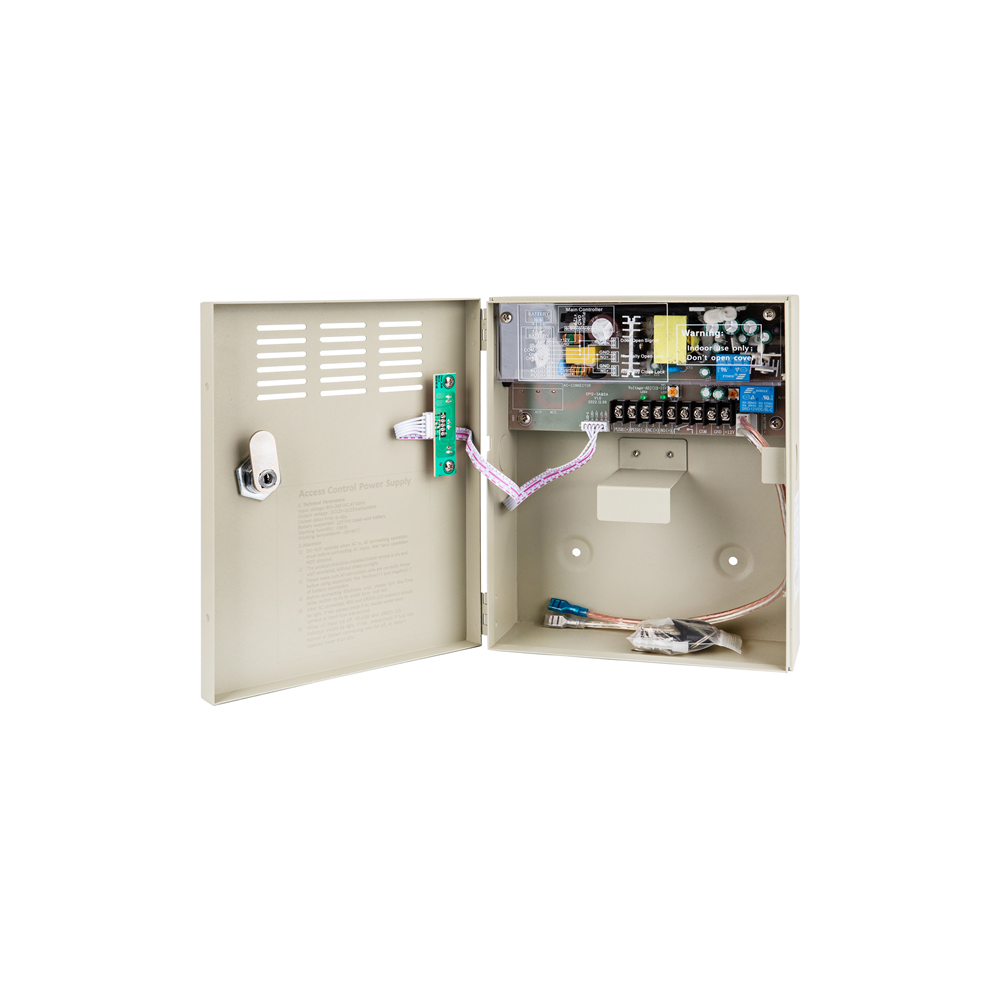

Heavy duty steel case painted insulation coating
Indicators for AC input,DC output and battery
Easy knocked wire connecting holes
Regular protection OVP, SCP, OCP
CE/FCC approved
ModelCP12-5A-EG
InputVoltage Range90 ～ 264 VAC
Frequency Range47 ～ 63 Hz
Efficiency≥85%@Rated voltage
AC Current1.6A
Inrush CurrentCold start：≤30A@115Vac；≤50A@230Vac
Leakage Current＜0.75mA@264Vac
OutputRated VoltageDC 12V
Rated Current5A
Voltage Adjustment RangeDC 12V ～ 15V
Current Range0～5A Max
Rated Power60W
Ripple & Noise≤100mVpk
Voltage Tolerance±3%
Battery Charging Voltage13.8V
Battery Charging Current0 ～ 0.3A
Line Regulation≤0.1%
Load Regulation≤3%
Setup,Rise,Hold Up Time230Vac Full load：≤3S,≤3S,≥50mS
ProtectionOver load120% ～ 150%@Rated power. Hiccup mode, recovers automatically after fault condition is removed.
Over Voltage120% ～ 130%@Rated voltage. Hiccup mode, recovers automatically after fault condition is removed.
Over Current120% ～ 150%@Rated current. Hiccup mode, recovers automatically after fault condition is removed.
Short CircuitNo damage,Hiccup mode, recovers automatically after fault condition is removed.
Battery ProtectionAnti-reverse protection，Short circuit protection，Undervoltage protection
EnvironmentWorking Temp.,HumidityTemp.：-10℃ ～ +40℃ ；Humidity：10% ～ 95% RH, Non-condensing
Storage Temp.,HumidityTemp.：-20℃ ～ +85℃ ；Humidity：10% ～ 95% RH, Non-condensing
Temp.Coefficient≤0.05V/℃（0℃ ～ +45℃）
Vibration10 ～ 500Hz，2G 10min./1cycle, 60min. each along X,Y,Z axes
Safety & EMCSafety StandardsCE：EN/IEC 62368-1；EN/IEC 60950-1
Withstand VoltageIP～OP: ≥3KVac
Isolation ResistanceIP～OP: ≥100MΩ@500Vdc,25℃,70% RH
EMCFCC/Part 15 ;EN55032、EN55035；EN/IEC61000
OthersProduct Size208*170*70.5mm
Packing12pcs/carton, 51.6*40*22.8CM
CertificateCE
Warranty2 Years
