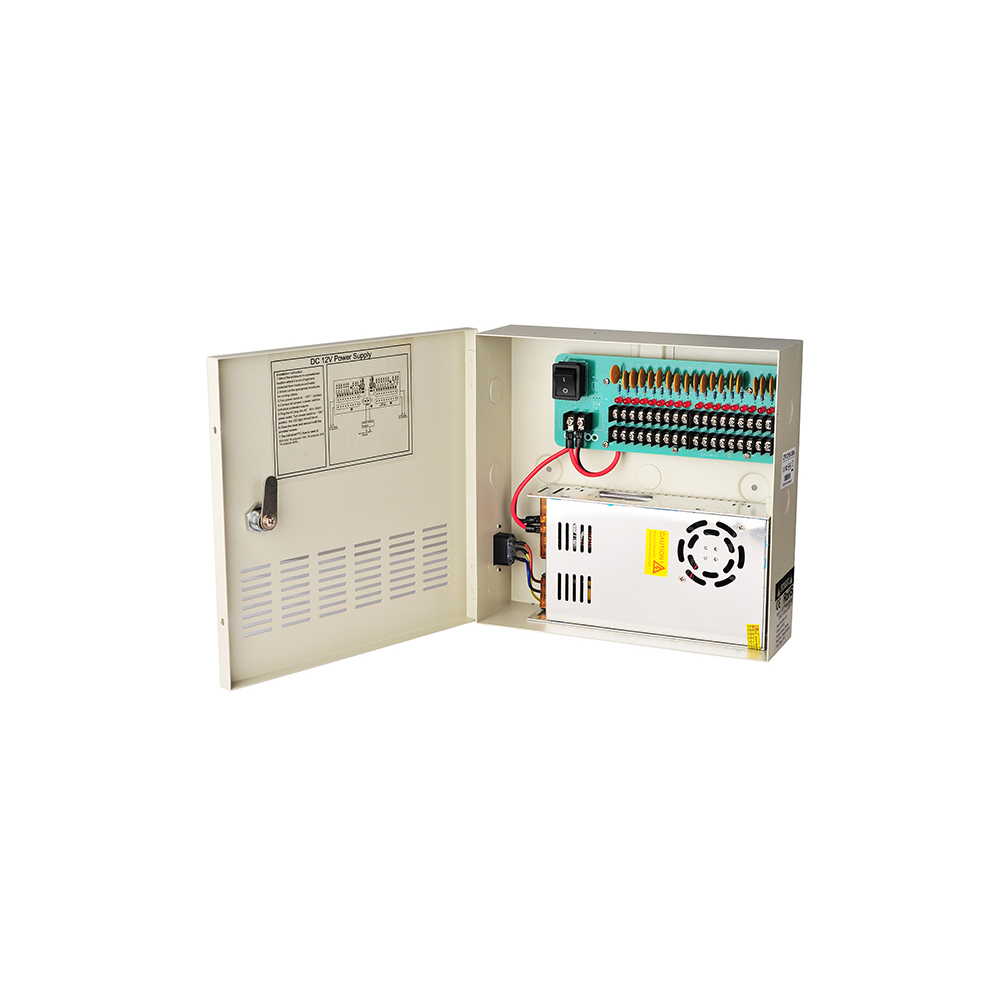

Metal case PSU DC12V 30A 18CH power distribution box-CE listed

$10.00
Model：CP1218-30A
Quantity
ADD TO CART
BUY NOW
马上咨询
Prev: CCTV UPS DC12V 10A 9CH support battery backup -CElisted
Next: Adapter DC12V 2A wallmount- UL
Detail
DC12V 30A 18CH 360W output
Resettable PTC fuse rated 2A
Build-in energy saving smart cooling fan

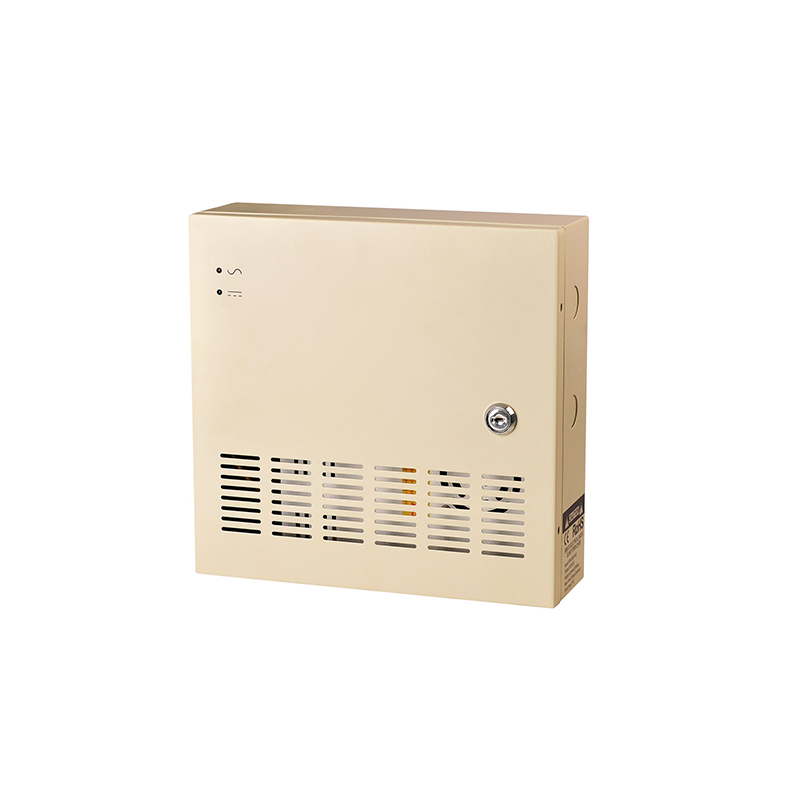

Heavy duty steel case painted insulation coating
Indicators for AC input and DC output

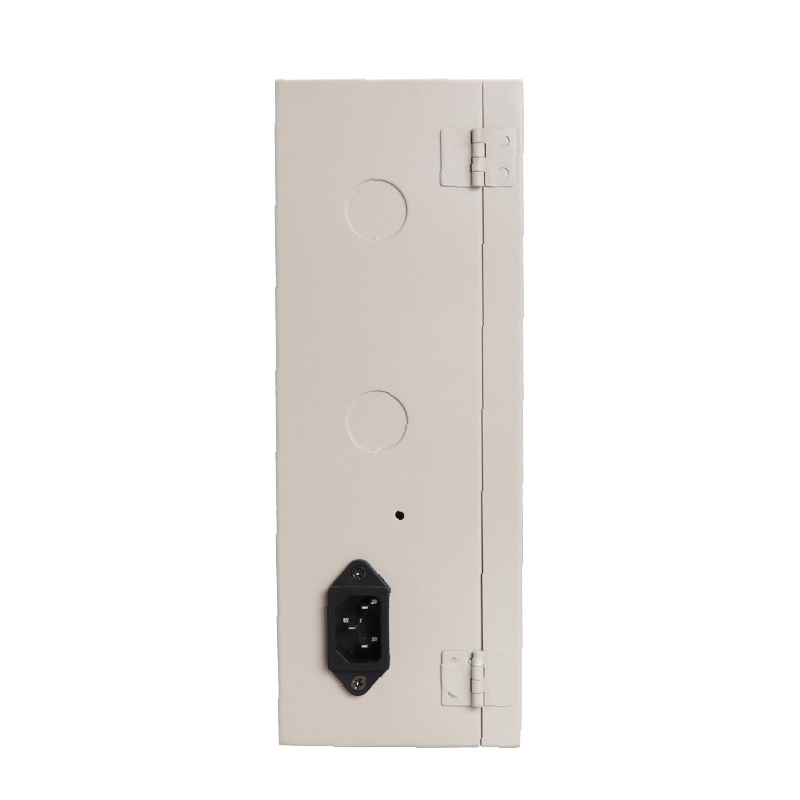

Easy knocked wire connecting holes
Regular protection OVP, SCP, OCP
CE approved
ModelCP1218-30A
InputVoltage Range90 ～ 130Vac Or 185-264Vac
Frequency Range47 ～ 63 Hz
Efficiency≥92%@Rated voltage
AC Current8A
Inrush CurrentCold start:≤40A@115Vac；≤75A@230Vac
Leakage Current＜0.75mA@264Vac
OutputRated VoltageDC 12V
Rated Current30A
Voltage Adjustment RangeDC 12V ～ 15V
Current Range0～30A
Rated Power360W
Total Output Channel18路
Fuse type2A PTC/路
Ripple & Noise≤200mVpk
Voltage Tolerance±3%
Line Regulation≤0.1%
Load Regulation≤0.1%
Setup,Rise,Hold Up Time230Vac Full load：≤3S,≤3S,≥10mS
ProtectionOver load120% ～ 150%@Rated power. PTC protection mode，recovers automatically after fault condition is removed.
Over Voltage120% ～ 130%@Rated voltage.Hiccup mode, recovers automatically after fault condition is removed.
Over Current120% ～ 150%@Rated current. PTC protection mode，recovers automatically after fault condition is removed.
Short CircuitNo damage,PTC protection mode，recovers automatically after fault condition is removed.
EnvironmentWorking Temp.,HumidityTemp.：-10℃ ～ +40℃ ；Humidity：10% ～ 95% RH, Non-condensing
Storage Temp.,HumidityTemp.：-20℃ ～ +85℃ ；Humidity：10% ～ 95% RH, Non-condensing
Temp.Coefficient≤0.03V/℃（0℃ ～ +45℃）
Vibration10 ～ 500Hz，2G 10min./1cycle, 60min. each along X,Y,Z axes
Safety & EMCSafety StandardsCE：EN/IEC 62368-1；EN/IEC 60950-1
Withstand VoltageIP～OP: ≥3KVac
Isolation ResistanceIP～OP: ≥100MΩ@500Vdc,25℃,70% RH
EMCFCC/Part 15 ;EN55032、EN55035；EN/IEC61000
OthersProduct Size266.5*259*77.6mm
Packing4pcs/carton, 55*29*19CM
CertificateCE
Warranty2 Years
