Adapter DC12V 3A wallmount- CE

WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
$10.00
Model：HT3000-V
Quantity
ADD TO CART
BUY NOW
马上咨询
Prev: Adapter DC12V 2A desktop
Next: CCTV UPS DC12V 10A 9CH support battery backup -CElisted
Detail
DC 12V3A 36W output
Regular 5.5*2.1mm DC connector(Size customizable )
Pure copper core DC cable 0.8m
Regular protection OVP, SCP, OCP
CE/FCC approved

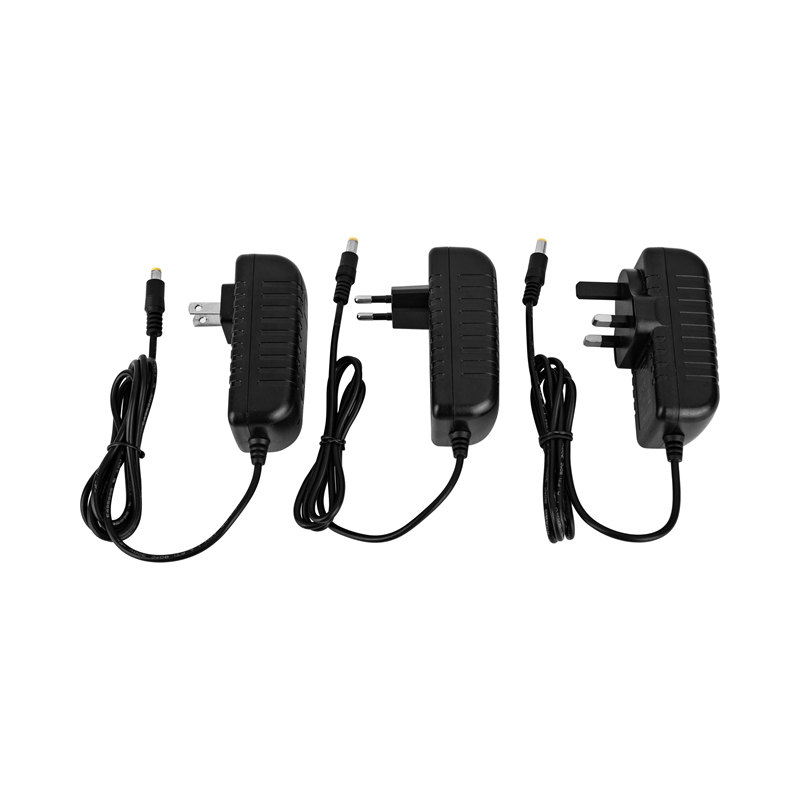

US/EU/UK plug available
ModelHT3000-V
InputVoltage Range100 ～ 264 VAC
Frequency Range47 ～ 63 Hz
Efficiency≥86%@Rated voltage
AC Current1A
Inrush CurrentCold start：≤30A@115Vac；≤50A@230Vac
Leakage CurrentTouch current ＜0.1mA@264Vac
OutputRated VoltageDC 12V
Rated Current3A
Current Range0 ～ 3A
Rated Power36W
Ripple & Noise≤120mVpk
Voltage Tolerance±3%
Line Regulation≤0.1%
Load Regulation≤3%
Setup,Rise,Hold Up Time230Vac Full load：≤1S,≤1S,≥10mS
ProtectionOver load120% ～ 150%@Rated power. Hiccup mode, recovers automatically after fault condition is removed.
Over Voltage120% ～ 130%@Rated voltage. Hiccup mode, recovers automatically after fault condition is removed.
Over Current120% ～ 150%@Rated current. Hiccup mode, recovers automatically after fault condition is removed.
Short CircuitNo damage,Hiccup mode, recovers automatically after fault condition is removed.
EnvironmentWorking Temp.,HumidityTemp.：-10℃ ～ +40℃ ；Humidity：10% ～ 95% RH, Non-condensing
Storage Temp.,HumidityTemp.：-20℃ ～ +85℃ ；Humidity：10% ～ 95% RH, Non-condensing
Temp.Coefficient≤0.05V/℃（0℃ ～ +45℃）
Vibration10 ～ 500Hz，2G 10min./1cycle, 60min. each along X,Y,Z axes
Safety & EMCSafety StandardsCE：EN/IEC 62368-1；EN/IEC 60950-1
Withstand VoltageIP～OP: ≥1.5KVac
Isolation ResistanceIP～OP: ≥10MΩ@500Vdc,25℃,70% RH
EMCFCC/Part 15 ;EN55032、EN55035；EN/IEC61000
OthersDC Plug5.5*2.1*10mm(customizable)
DC Cable Length0.8M(customizable)
Product Size93*70*46mm(EU), 93*58*46mm(US), 93*49*63mm(UK)
Packing100pcs/carton, 56*33*33CM
CertificateCE,FCC
Warranty1 Year
