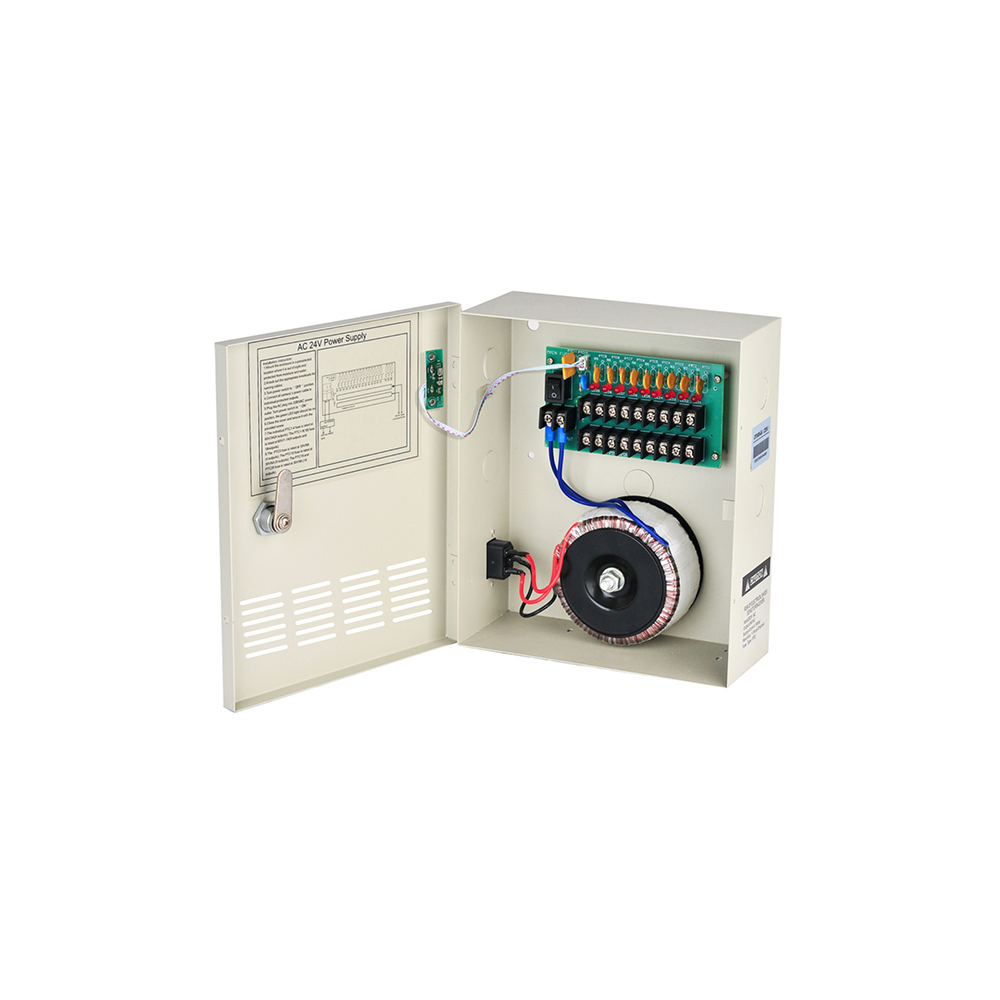

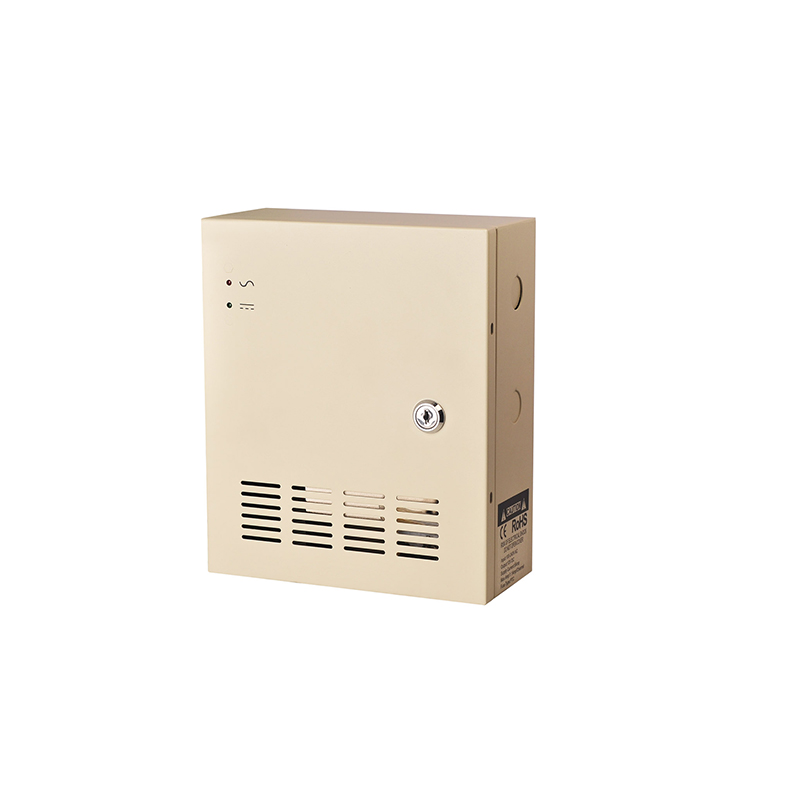

Metal case PSU AC24V 10A 9CH Transformer-CE listed

WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
$10.00
Model：CP2409-10A
Quantity
ADD TO CART
BUY NOW
马上咨询
Prev: Adapter DC12V 3A wallmount- Ul
Next: Adapter DC12V 3A desktop fixed AC cable-CE listed
Detail
ModelCP2409-10A
InputVoltage Range94 ～ 126Vac Or 187-253Vac
Frequency Range60Hz Or 50Hz
Efficiency≥98%@Rated voltage
AC Current3A Max Or 1.5A Max
Inrush Current/
Leakage Current＜0.1mA@126Vac Or ＜0.1mA@253Vac
OutputRated VoltageAC 24V
Rated Current10A
Voltage Adjustment Range
Current Range0～10A
Rated Power240W
Total Output Channel9CH
Fuse type2A PTC/CH
Ripple & Noise/
Voltage Tolerance/
Line Regulation/
Load Regulation/
Setup,Rise,Hold Up Time/
ProtectionOver load/
Over Voltage/
Over Current/
Short CircuitNo damage,PTC protection mode，recovers automatically after fault condition is removed.
EnvironmentWorking Temp.,HumidityTemp.：-10℃ ～ +40℃ ；Humidity：10% ～ 95% RH, Non-condensing
Storage Temp.,HumidityTemp.：-20℃ ～ +85℃ ；Humidity：10% ～ 95% RH, Non-condensing
Temp.Coefficient≤0.05V/℃（0℃ ～ +45℃）
Vibration10 ～ 500Hz，2G 10min./1cycle, 60min. each along X,Y,Z axes
Safety & EMCSafety StandardsCE：EN/IEC 62368-1；EN/IEC 60950-1
Withstand VoltageIP～OP: ≥3KVac
Isolation ResistanceIP～OP: ≥100MΩ@500Vdc,25℃,70% RH
EMCFCC/Part 15 ;EN55032、EN55035；EN/IEC61000
OthersProduct Size206.4*242.3*84.8mm
Packing8pcs/carton 51.6*40*22.8CM
CertificateCE,FCC
Warranty2 Years
