EVERSECU 8 Inch All in One Retina Display CCTV Tester,8K 32MP 12MP IP Camera Tester,4K 8MP TVI/CVI/A

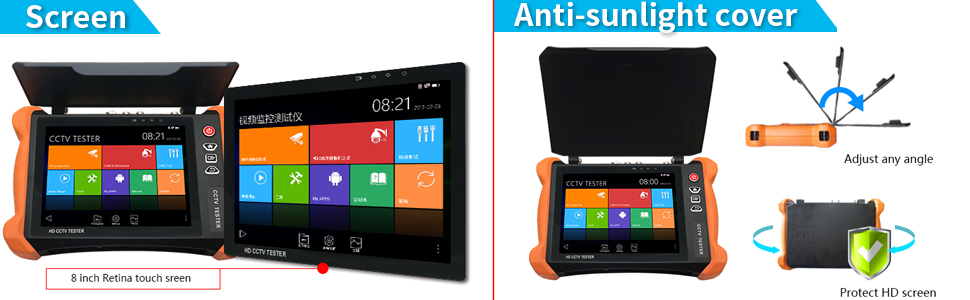

✅【Multi-function CCTV Tester】Introducing the X9-MOVTADHS CCTV Tester with an 8" IPS touch screen at 2048x1536 resolution. It features a digital multimeter, optical power meter, TDR cable testing, and cable tracing capabilities. Supports 8K, ONVIF, POE, WiFi, dual Gigabit Ethernet, RS485, audio input, HDMI I/O, LED light, SD card, and a built-in battery. Runs on Android for network connectivity and app updates.
✅【DMM&OPM&TDR&VFL】Digital Multimeter: Measures AC/DC voltage, current, resistance, capacitance, with features like data hold, relative measurement, and continuity test. Optical Power Meter: Assesses signal power and insertion loss for equipment and photoelectric components. TDR Cable Test: Measures cable length and detects short circuits, with a range up to 1200 meters.With, Visual Fault Locator. Laser Grade: Class II, Power output: < 1mW, Distance: 98ft
✅【8K IP Camera tester】 This network camera tester supports up to 8K 32MP 8160x3616P and 4K 12MP IP cameras, with PoE IEEE802.3af/at 48V up to 25.5W power. It offers rapid video auto-view, testing report creation, and features like IP Discovery, Quick ONVIF, IPC test, RTSP playback, and Client APK. It also creates Wi-Fi hotspots and analyzes Wi-Fi. Includes specialized tools for Hikvision and Dahua cameras, with a one-key activation for image tests and parameter modifications.

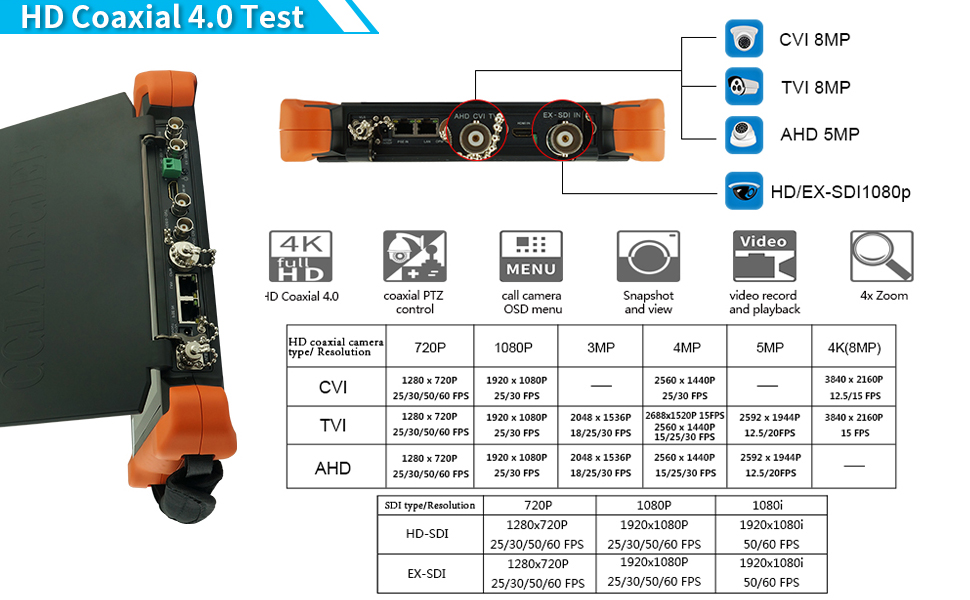

✅【8MP HD Analog CCTV Camera Tester】The 5-in-1 Coaxial camera tester supports up to 8MP (3840x2160P) for TVI, AHD, CVI, SDI, and CVBS cameras, with UTC PTZ control and OSD menu access. The built-in "Auto HD" app automatically detects camera types for HD AHD, TVI, CVI, and SDI models. It features RS485 control with a baud rate of 600-115200bps and is compatible with over 30 protocols including PELCO-D/P, Samsung, and Panasonic.
✅【Power & Quality Assurance】Equipped with a 7.4V 7000mAh Lithium polymer battery, offering reliable battery life and charging with DC12V 2A input/output and DC5V 2A output. The X9-MOVTADHS uses the V6 battery model, available in our store, Backed by a professional technical support team, we provide 24-hour assistance and a 1-year warranty. For any inquiries or technical issues, feel free to reach out to us.
● IPC TEST, HIK Camera test tool, DH Camera test tool

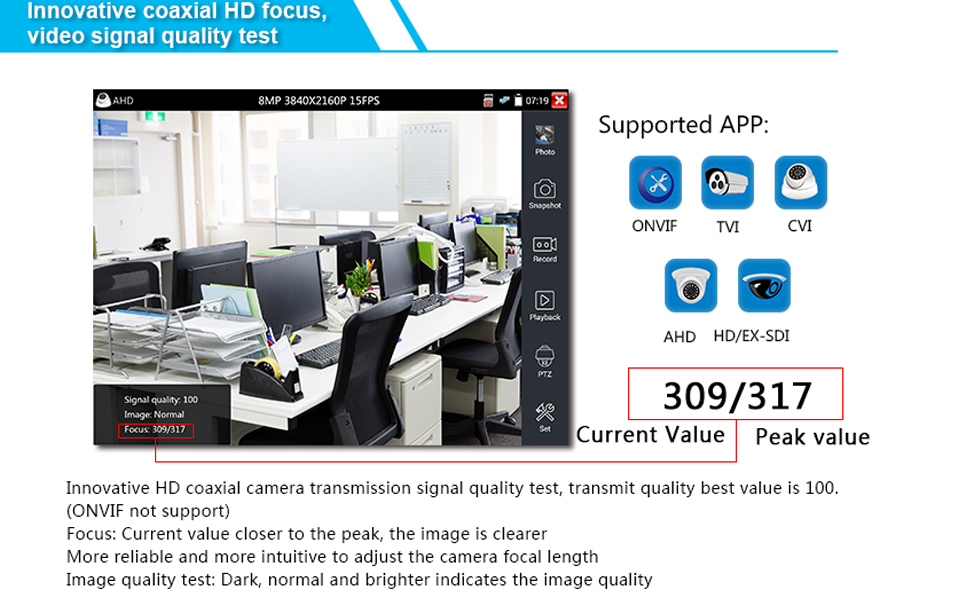

● Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
● DC12V/3A power output, camera can be powered from DC 12Votage
● 48V PoE power output power
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
● CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable
● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
Cable test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

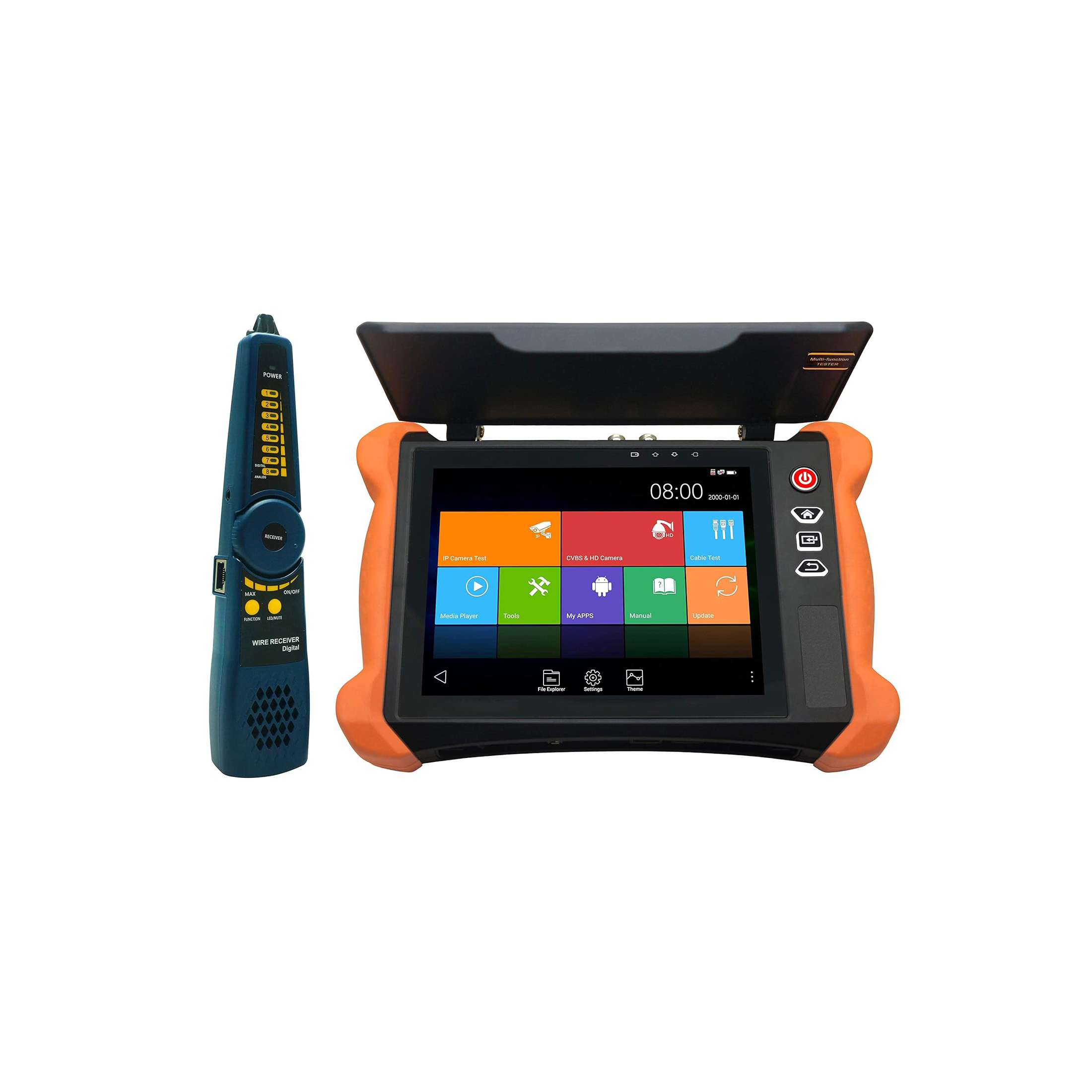

● Cable tracer, search BNC cable, network cable and telephone cable from the mess cables
● TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable' s length and short circuit
Other functions:
● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
● POE & power information, DC12V& PoE power and voltage output /input measurement
● Tester Play: Tester, android version mobile phone and PC display at the same time
● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
● HDMI input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display,record and snapshot
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
● Self -update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Quick office, quick office app (support excel, word, ppt format) doc. editable
● 8GB SD card including
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V/ 7000mAh Lithium Ion Polymer Battery, after 6~7 hours charging , working time lasts 13 hours
