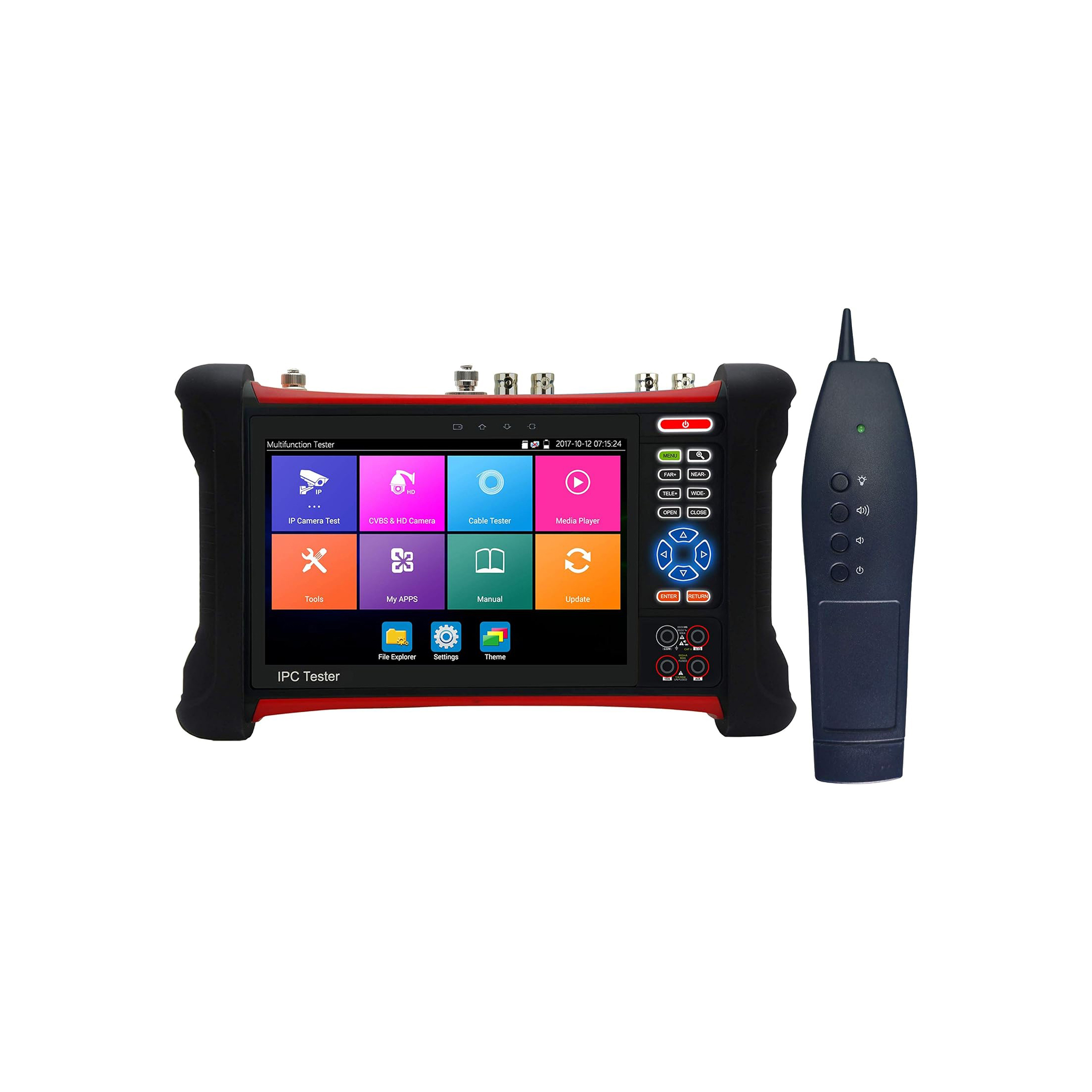

EVERSECU 7-inch retina touch screen all-in-one multi-functional 4K IP Camera Tester 8MP HD-SDI/TVI/A
[Camera Test]: Features a 7" retina touch screen with 1920x1200 resolution. Supports H.265/H.264 IP for 4K video display on mainstream platforms. Offers 8MP TVI, AHD, CVI, EX-SDI, HD-SDI, and 3G-SDI tests with various frame rates, zoom, recording, playback, and PTZ control.Includes rapid ONVlF auto login, 'AXIS/Hik' camera testing, and non-ONVlF IPC tests with HIK and DH tools.Provides video level meter for signal level checks, DC12V/3A and 48V PoE power outputs.One-key rapid video detection, built-in Wi-Fi for wireless camera display, and Wi-Fi hotspot creation.CVBS loop test for BNC cable check, and an enhanced color bar generator for PAL/NTSC systems.
[Cable Test]: Advanced cable tester checks UTP and telephone cables for order and connectivity, with report saving and customization options.RJ45 TDR tests assess cable pairs for length, attenuation, and more. Tracer locates BNC, network, and phone cables in clutter.TDR tests measure BNC, network, phone, RVV, and elevator cables up to 1.2KM, detecting length and shorts. Visual Fault Locator, Laser Grade: Class II, Power output: < 1mW, Distance: 98ft
[Multifunctional]: Network utilities include Ping, IP scanning, Port Flash, DHCP server, and Trace Route. Measures POE and power info, with DC12V and PoE voltage output/input. Tester Play allows simultaneous display on tester, Android mobile, and PC.Features shortcut buttons and a menu for quick selection of PoE power, IP settings, CVBS, LAN, and HDMI IN. HDMI input supports various resolutions for display, recording, and snapshot capture.
[Multifunctional]: Monitors traffic, showing real-time network port or WIFI upload/download speeds and network stats. Software self-updates, with Android app installation capability. Plays 4K and media files like MKV/MP4. Quick office functionality for editing Excel, Word, and PowerPoint documents.
[Multifunctional]: Includes an 8GB SD card for storage. Accurately displays the native resolution of IP camera images. Features audio input for recording, along with LED lamps, calculators, and music players. Powered by a 7.4V/5000mAh Li-Polymer battery, offering 10 hours of use after 6-7 hours of charging.
● IPC TEST, HIK camera test tool, DH camera test tool

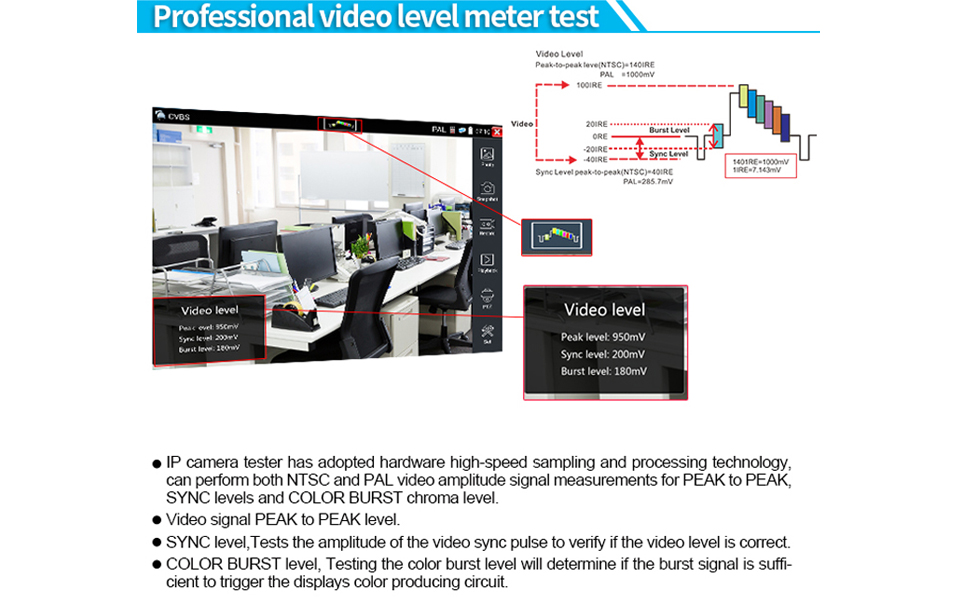

● Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
● DC12V/3A power output, the camera can be powered from DC 12Votage
● 48V PoE power output power
● Rapid video, just by one key to detect all network cameras and auto display
● Built-in Wi-Fi, display image from the wireless camera, create WIFI hotspot
● CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable
● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
Cable test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

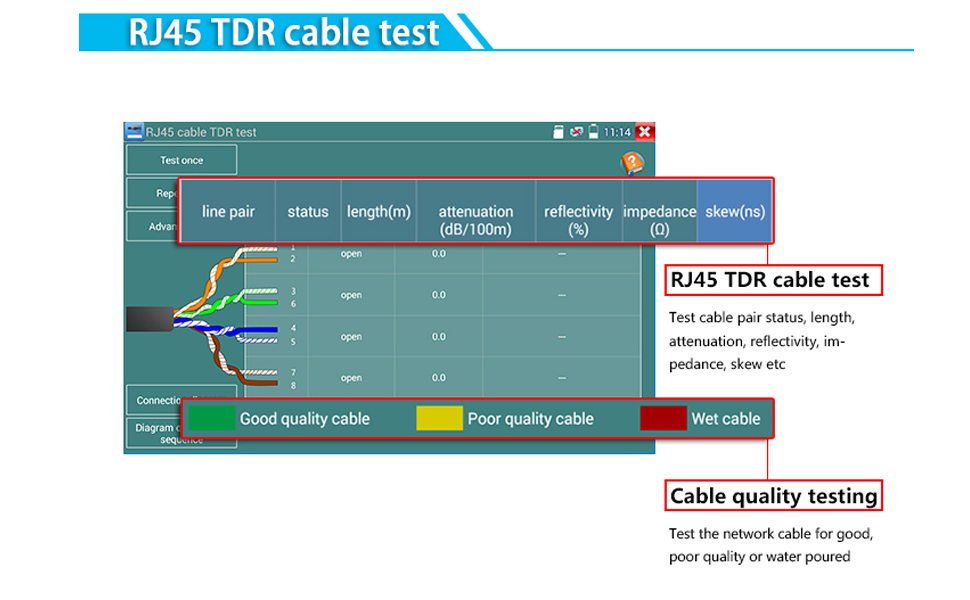

● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
● Cable tracer, search BNC cable, network cable and telephone cable from the mess cables
● TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable' s length and short circuit
Other functions:
● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
● POE & power information, DC12V& PoE power and voltage output /input measurement
● Tester Play: Tester, android version mobile phone and PC display at the same time
● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc

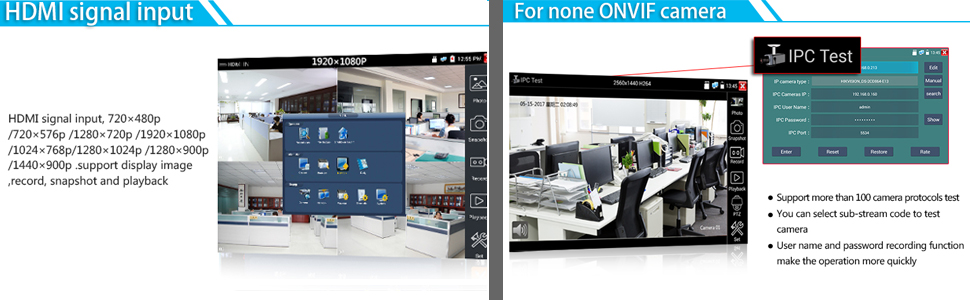

● HDMI input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display,record and snapshot
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
● Self -update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Quick office, quick office app (support excel, word, ppt format) doc. editable
● 8GB SD card including
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V/ 7000mAh Lithium Ion Polymer Battery, after 6~7 hours charging , working time lasts 13 hours
EVERSECU specializes in commercial and home surveillance camera solutions including a full line of innovative CCTV camera and video surveillance products, ranging from cameras to DVRs to CCTV accessories to offer a full range of protection.
