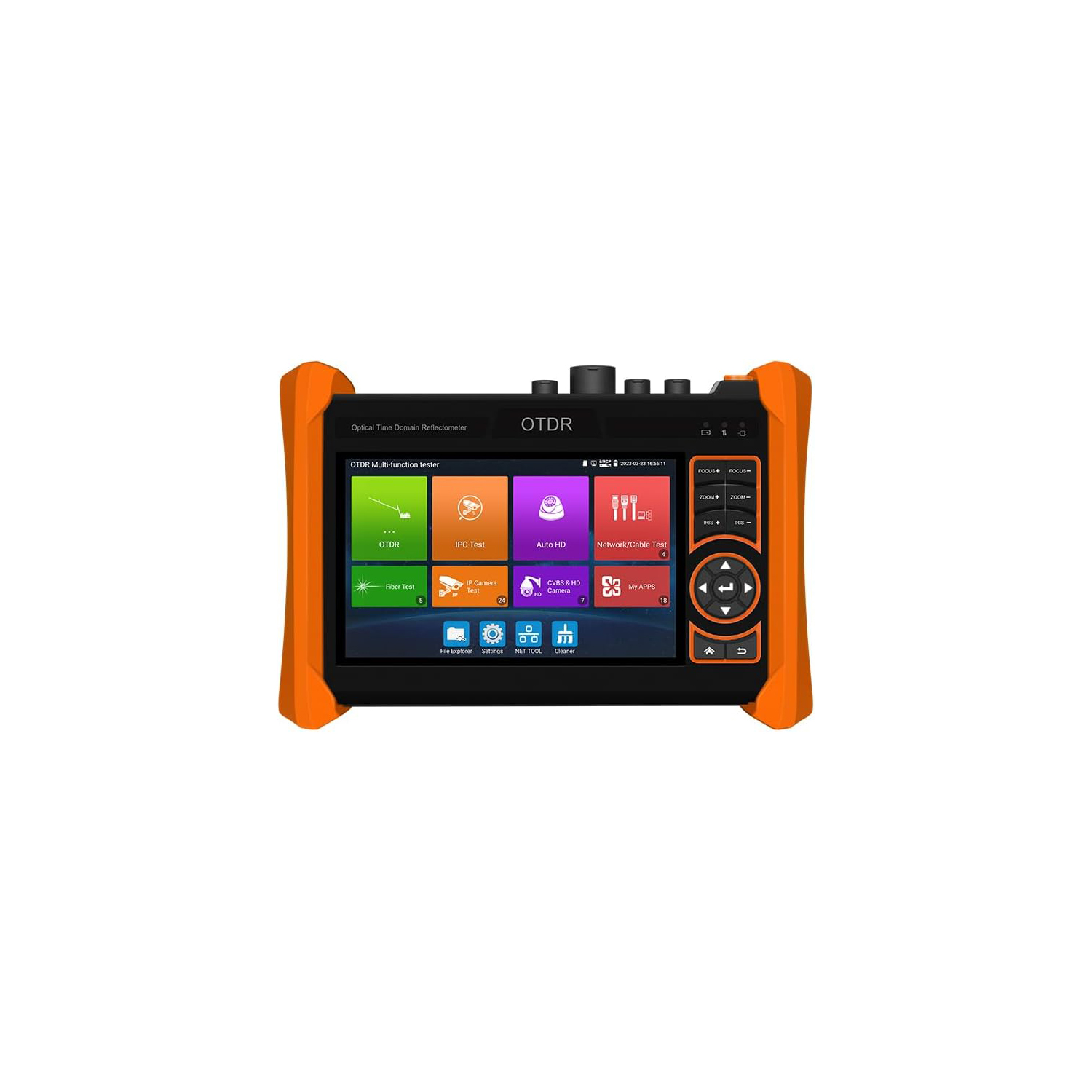

OTDR Fiber Optic Tester, 8K IP&Analog Camera Tester, Gigabit SFP, Cable Tracker, Eletroscope, Video
✅【Multi-function OTDR Fiber Optic Tester】It's an essential tool for fiber length, network, and CCTV camera testing. OTDR displays the power of the returned signal related to distance. The information can be used to confirm the transmission quality of a fiber optic link. It is widely used in the maintenance, construction, and monitoring of cable lines. It can measure the optical fiber length, transmission attenuation of optical fiber, splice attenuation, failure location, etc.

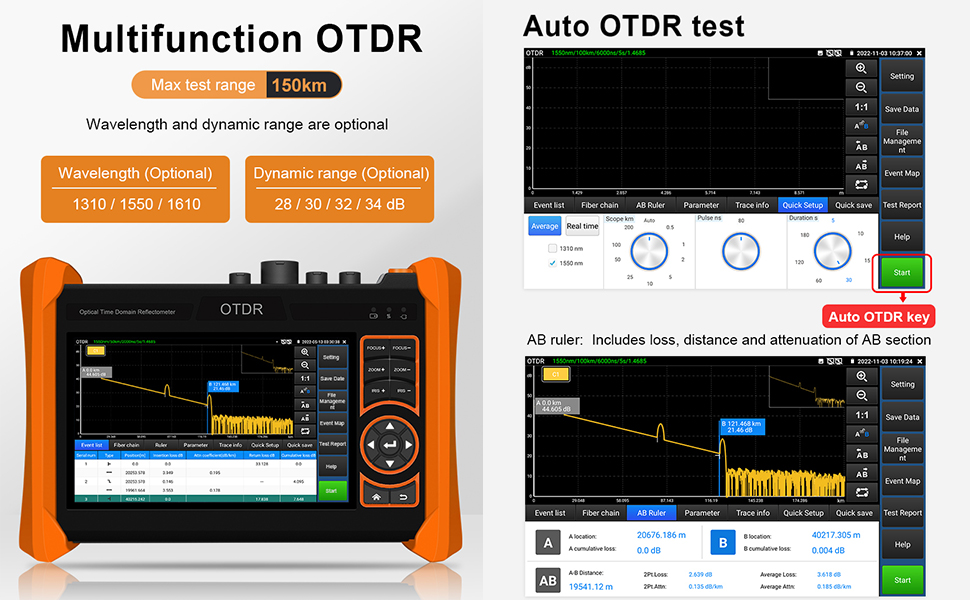

✅【Support 1310/1550 Dual-wavelength】 max test range 150KM, Automatic analysis of various linkers/fusion points, easy analysis of various events, Save and view the testing curves, support zoom and move curves, view details, Support saving cures number ≥30000pcs, Support UCC menu control mode A-TYPE, B-TYPE select
✅【8K CCTV Camera Tester】EVERSECU’s new CCTV tester features a 7’’ IPS touch screen with 1920*1200 resolution. It can test 8K H.265 IP cameras, CVBS analog cameras, and HD coaxial cameras (up to 8MP TVI / AHD / CVI / SDI camera test). It also supports UTC PTZ control and OSD menu access. The IPC tester can activate DH and Hik cameras in batches and modify their IP addresses, passwords, etc. It's onvif conformant and supports face recognition and test report creation.
✅【SFP optical module port】This IP camera tester comes with an SFP optical module port. It allows you to insert an SFP optical fiber module for optical fiber network testing and data transmission testing with devices that have SFP optical ports. It also has a lens focal length calculation function that simulates the display area of different lenses (2.8/3.6/4/6/8/12/16/25mm) for your reference when choosing a lens. The HD CCTV tester also includes an optical power meter, a visual fault locater

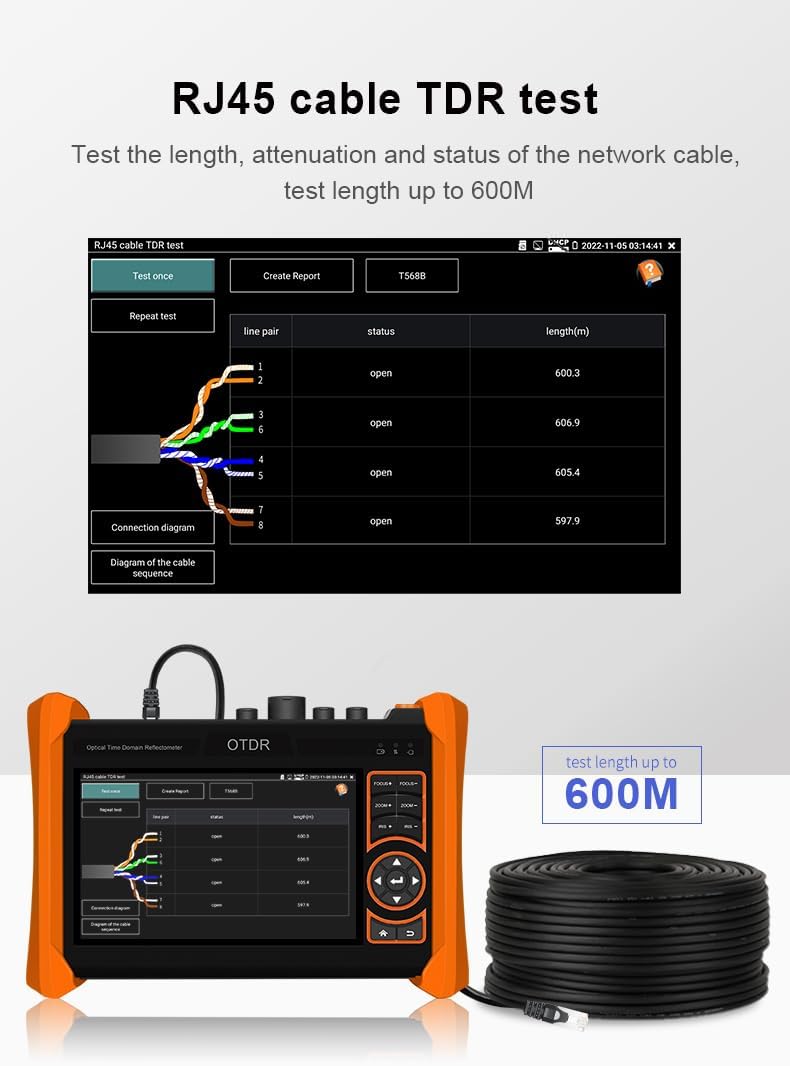

✅【Cable Tester】RJ45 cable test: it checks the status, length, attenuation, reflectivity, impedance, skew and other parameters of cable pairs. TDR cable test: it measures the length and short circuit of BNC cables, network cables, telephone cables, RVV cables and elevator cables, cat 5/6 cables up to 1.2KM. It also has a TDR network port for easy testing of network cables. Digital cable tracer: it helps you locate BNC cables, network cables and phone cables from the mess with high accuracy.

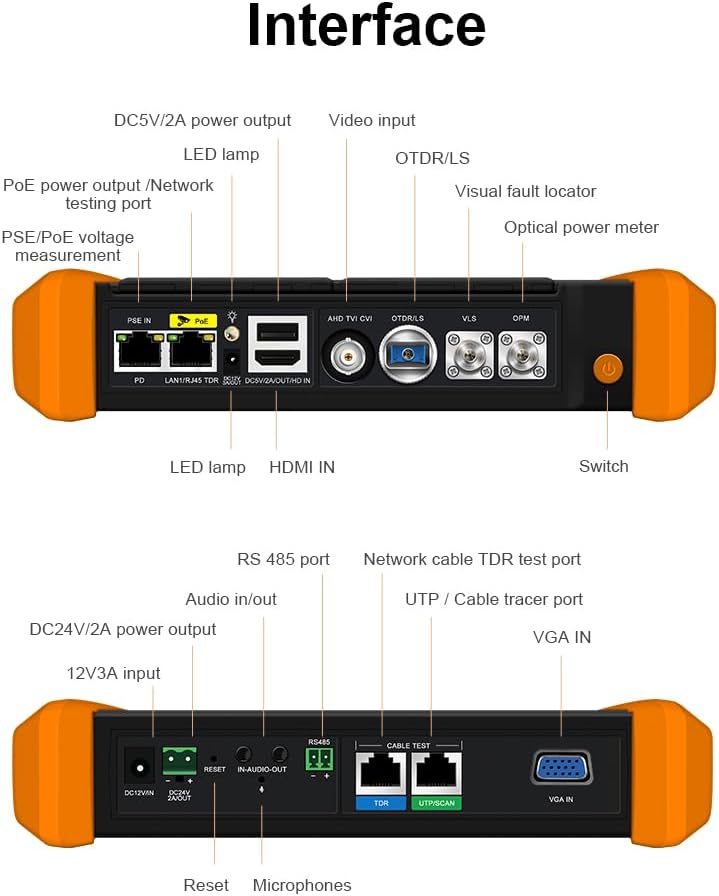

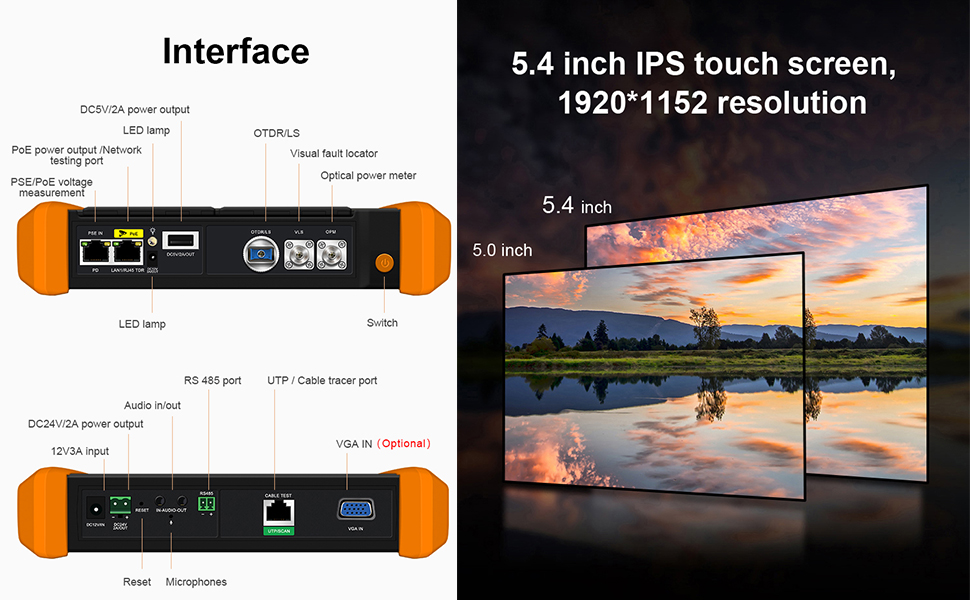

✅【Professional CCTV Monitor Tester】HDMI input & output + VGA input. EVERSECU CCTV tester has a WIFI analysis function that supports 2.4G/5G frequency bands and detects the nearby WIFI signals and their strength. It also supports POE48V, USB5V 2A, DC12V 3A, 24V 2A power output. It has a 7.6 V /7800mAh lithium ion polymer battery that can be charged in 3.5 hours and last up to 16 hours. An 8GB TF card is included.
✅【Other Functions】EVERSECU CCTV Tester has a built-in distance meter with a measurement range of 100m and an accuracy of ±3mm, supports HDMI input of 4K 30FPS, HDMI output of 4K 60FPS, and VGA input of 2K 60FPS. It features a professional WIFI analyzer that can detect the surrounding wifi signal and signal strength.

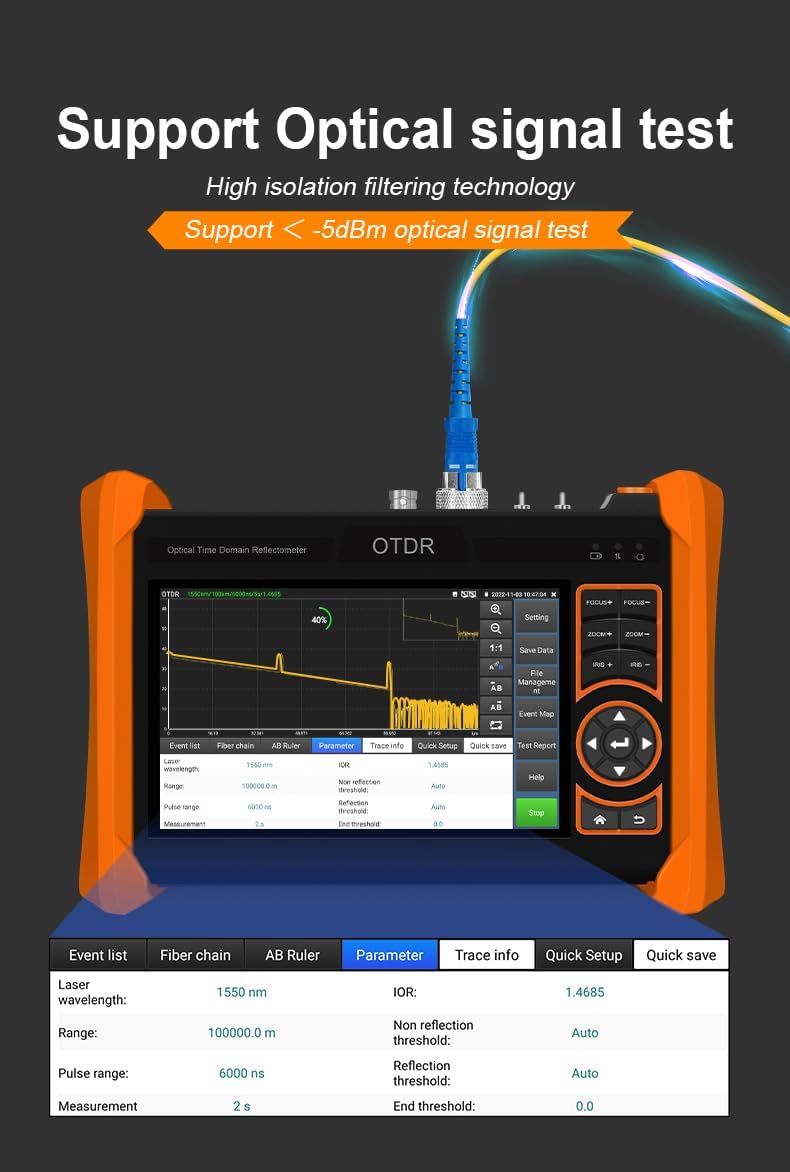

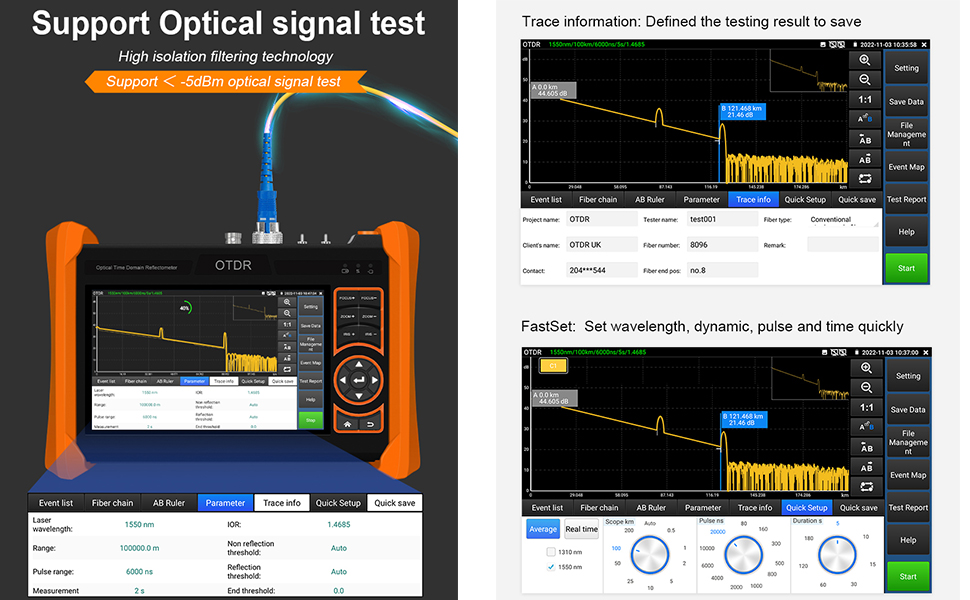

The OTDR Fiber Optic Tester is a versatile tool that is indispensable for testing the length of fiber, networks, and CCTV cameras. It shows the strength of the signal that bounces back as a function of distance. This data is useful in verifying the performance of a fiber optic connection. The tester is commonly used in the upkeep, building, and surveillance of cable lines. It can determine the length of the optical fiber, the transmission loss of the fiber, the splice loss, and the location of faults. This device supports dual-wavelengths of 1310/1550 and has a maximum testing range of 150KM. It can automatically analyze various linkers and fusion points, making it easy to analyze different events. The device allows you to save and view testing curves, and it supports zooming and moving curves for detailed viewing. It can save more than 30,000 curves. The device also supports UCC menu control mode with options to select either A-TYPE or B-TYPE.
The EVERSECU 8K CCTV Camera Tester is a new device that comes with a 7-inch IPS touch screen with a resolution of 1920*1200. It has the capability to test 8K H.265 IP cameras, CVBS analog cameras, and HD coaxial cameras (supporting up to 8MP TVI / AHD / CVI / SDI camera tests). Additionally, it supports UTC PTZ control and OSD menu access. The IPC tester can activate DH and Hik cameras in batches, and it allows for modifications to their IP addresses, passwords, and more. It complies with onvif standards and supports face recognition and the creation of test reports.

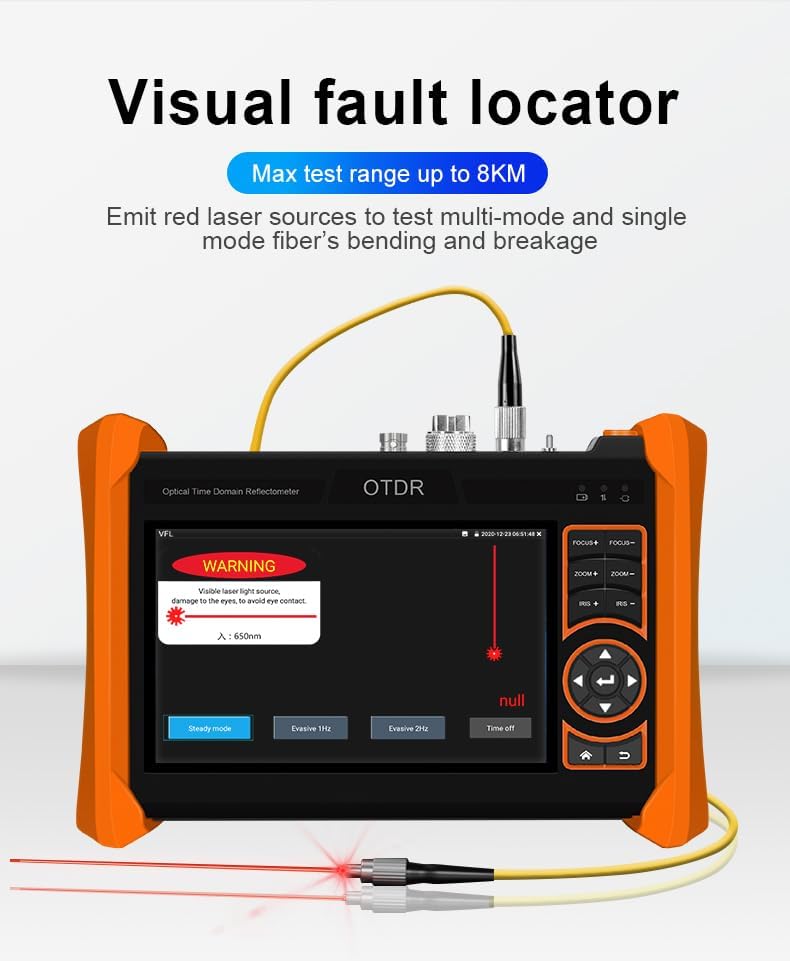

The IP camera tester is equipped with an SFP optical module port. This feature enables you to insert an SFP optical fiber module for testing optical fiber networks and conducting data transmission tests with devices equipped with SFP optical ports. Additionally, it includes a lens focal length calculation function that simulates the display area of various lenses (2.8/3.6/4/6/8/12/16/25mm), providing a reference when selecting a lens. The HD CCTV tester also incorporates an optical power meter and a visual fault locator.
The EVERSECU CCTV Monitor Tester is a professional device that supports HDMI input and output, as well as VGA input. It features a WIFI analysis function that can detect nearby WIFI signals and their strength across both 2.4G and 5G frequency bands. The device also supports various power outputs including POE48V, USB5V 2A, DC12V 3A, and 24V 2A. It is powered by a 7.6 V /7800mAh lithium-ion polymer battery that can be fully charged in 3.5 hours and can last up to 16 hours. Additionally, it comes with an 8GB TF card.
The EVERSECU CCTV Tester comes with several additional features:
It has a built-in distance meter with a measurement range of up to 100m and an accuracy of ±3mm.
It supports HDMI input of 4K at 30FPS, HDMI output of 4K at 60FPS, and VGA input of 2K at 60FPS.
It includes a professional WIFI analyzer that can detect the surrounding wifi signal and its strength.

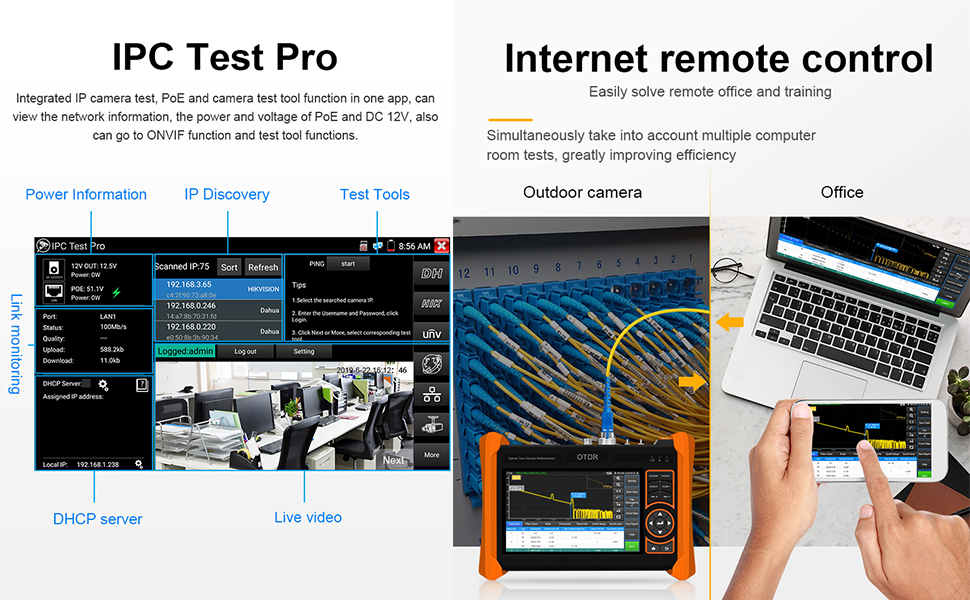

Moreover, it offers a network tool that includes functionalities such as Ping, IP scan, Port Flash, DHCP server, and Trace Route. It can provide information about POE & power, such as DC12V & PoE power and voltage output/input measurement. It features Tester Play, which allows the Tester, Android version mobile phone, and PC to display simultaneously.
Furthermore, it has a shortcut button and a drop-down menu that can select options like Poe power, IP setting, CVBS, LAN info, HDMI IN, etc. It supports traffic monitoring, displaying real-time upload and download speeds and other network parameters for network ports or WIFI connections.
EVERSECU specializes in commercial and home surveillance camera solutions including a full line of innovative CCTV camera and video surveillance products, ranging from cameras to DVRs to CCTV accessories to offer a full range of protection.
