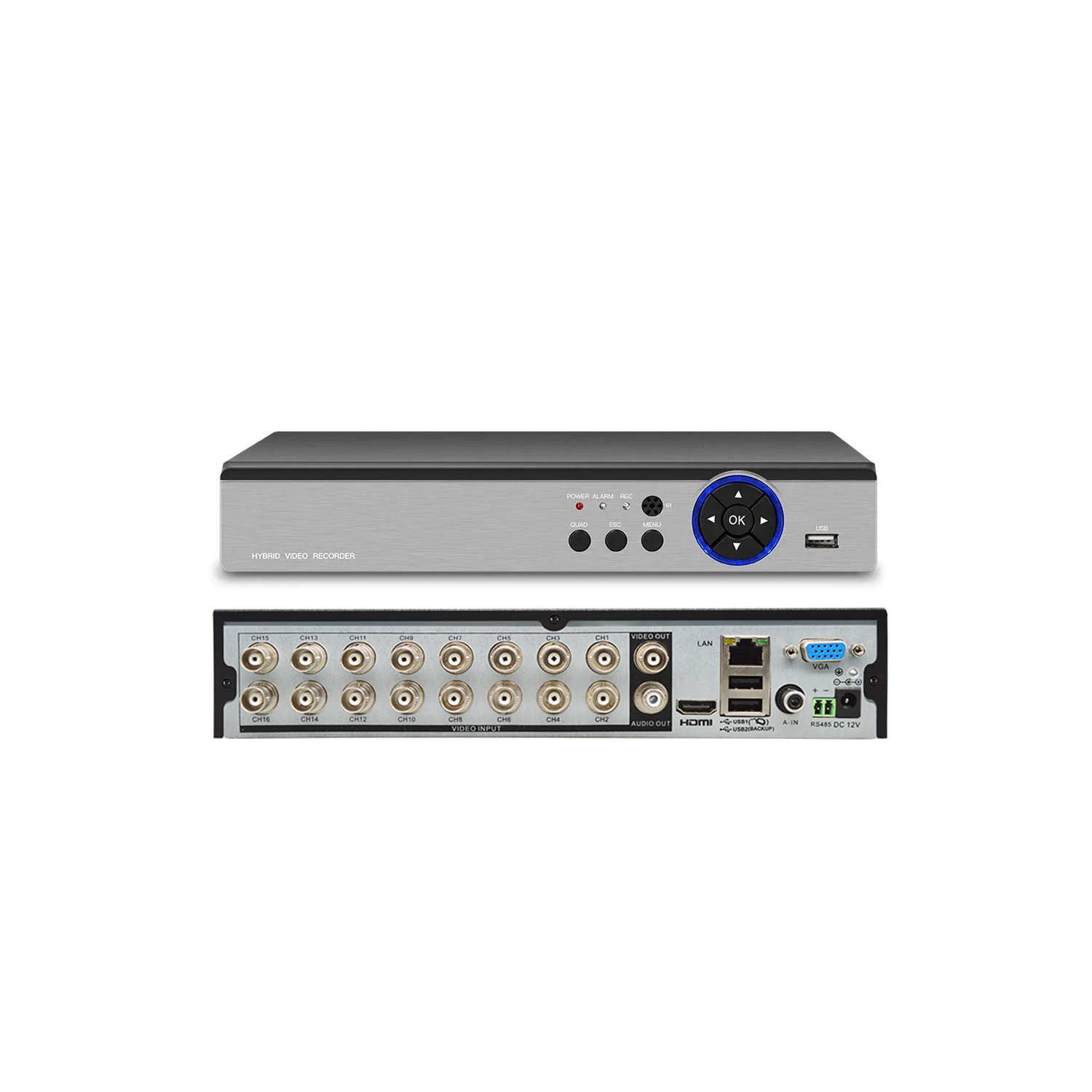

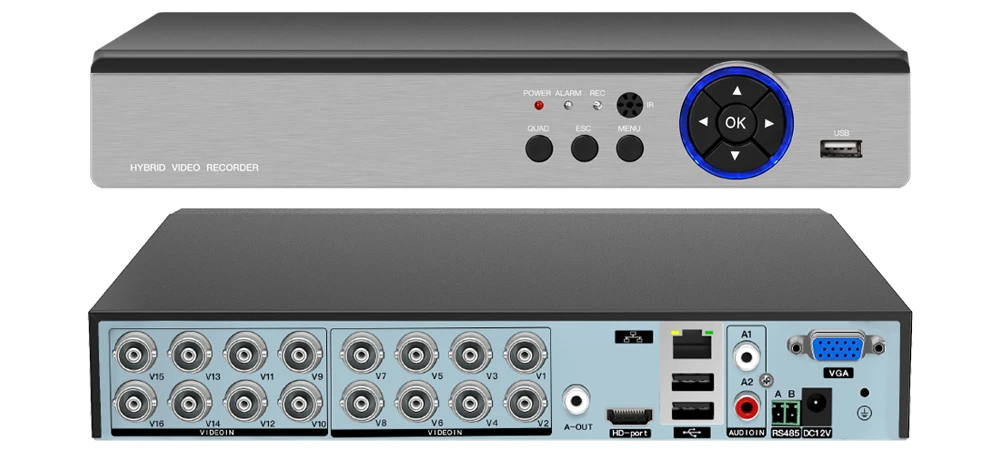

16CH 5MP-N Hybrid XVR

$60.00
Model：UV-BH-3516AE
Quantity
ADD TO CART
BUY NOW
马上咨询
Prev: Wireless Solar Powered Security Camera
Next: 8CH 5MP-N Hybrid DVR
Detail

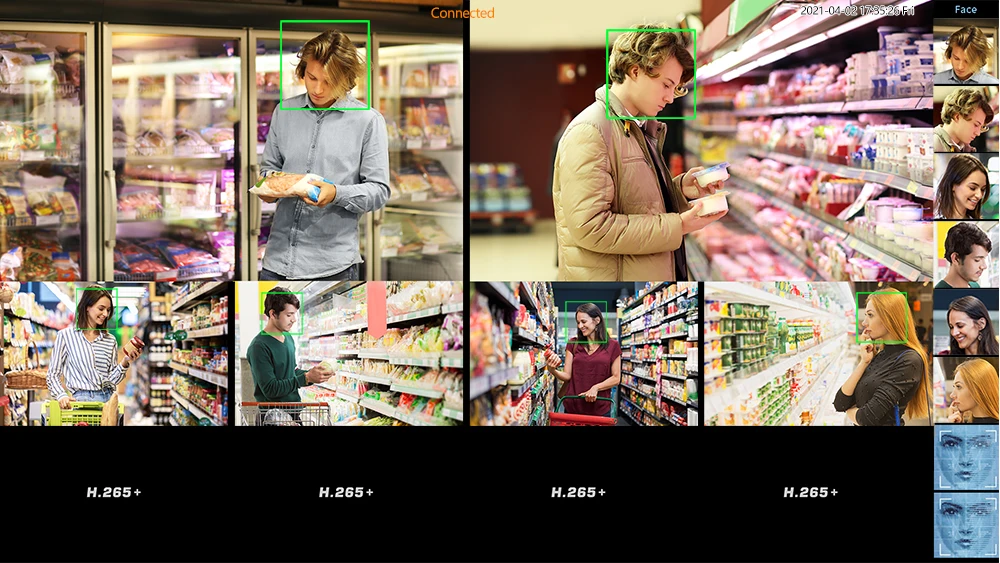

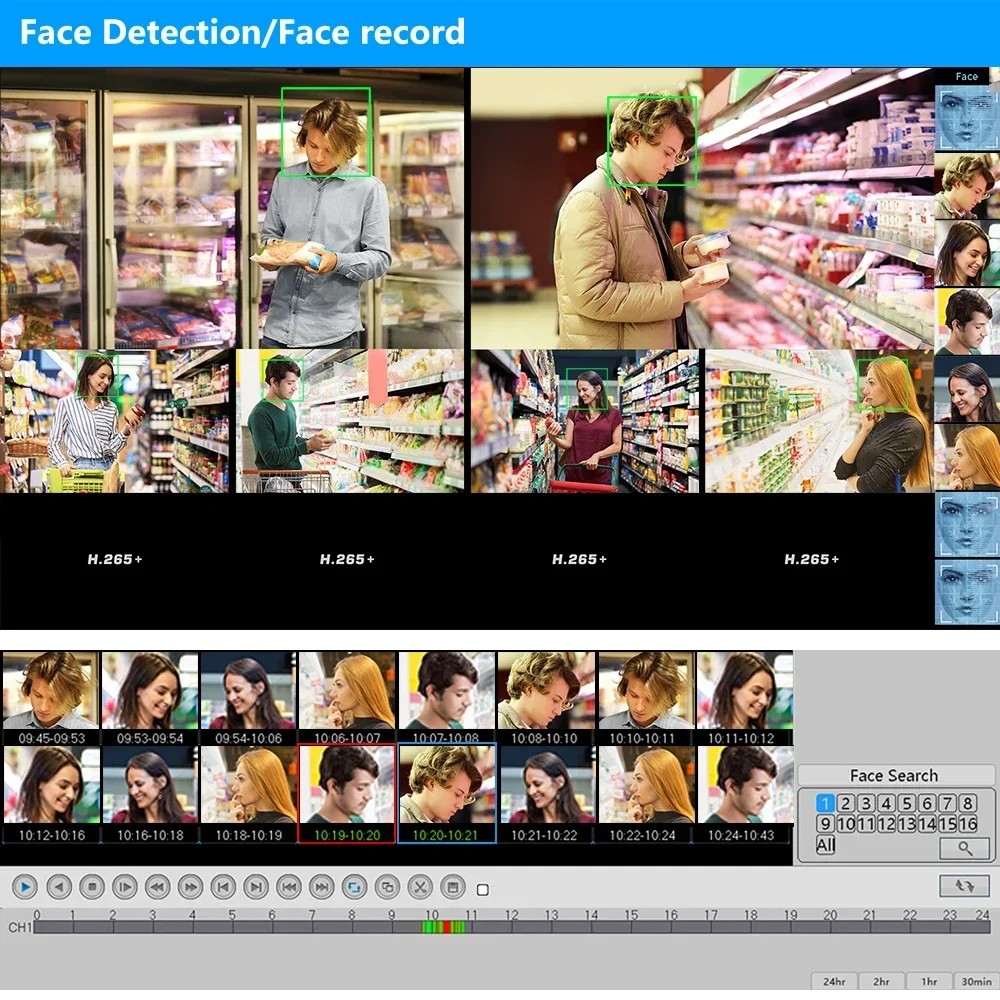

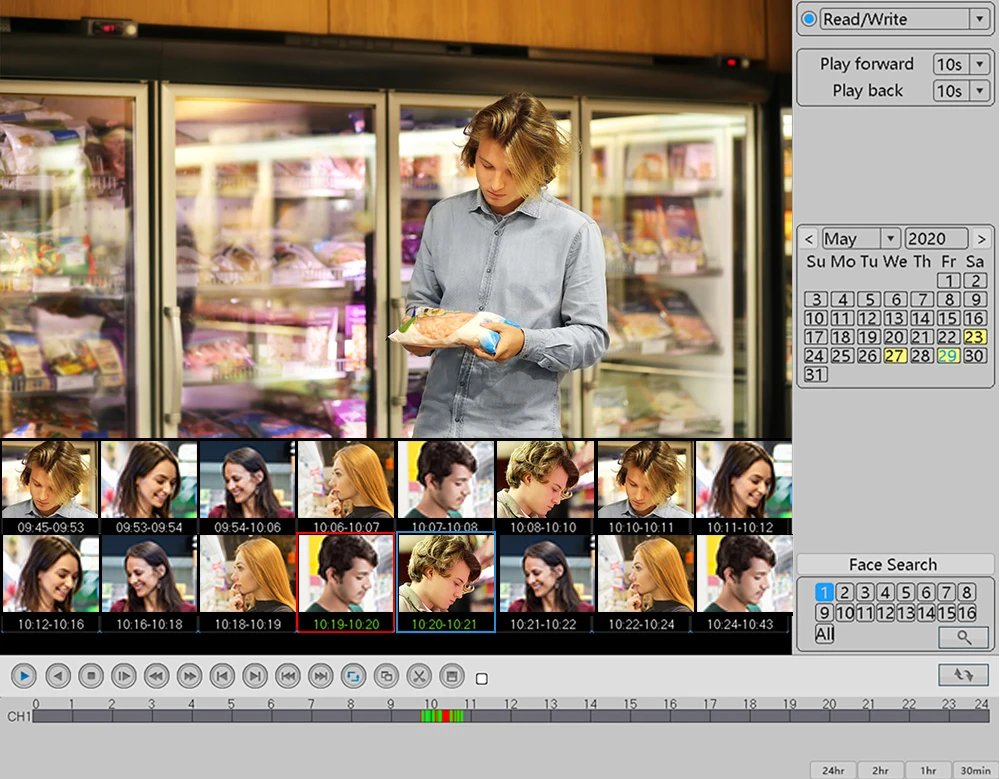

Face Record/Face Detection/Face Playback
Record every face that appears on the lens, without missing any details.

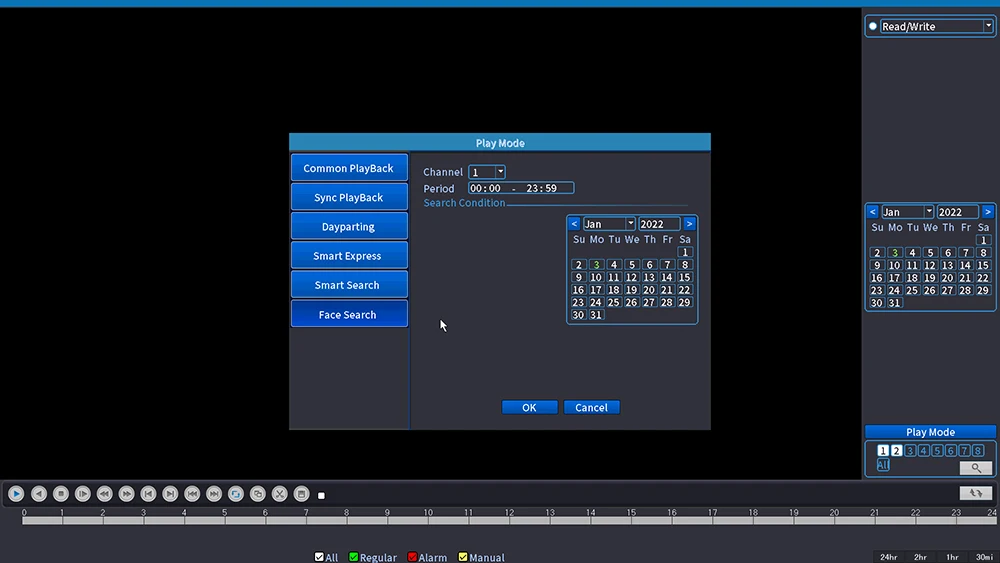

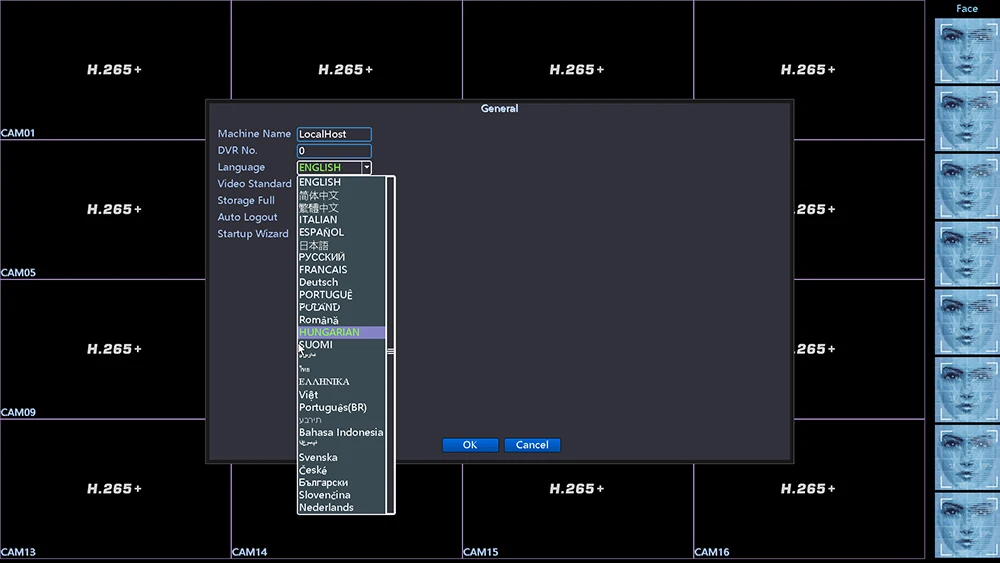

You need use the Face Detction Function IP Camera Support the Face Playback Langauages:
English,Russian,Italian,Portuguese,Spanish,French,Germany.,etc...
Total 28 languages Motion Detection & Email Alert/Record

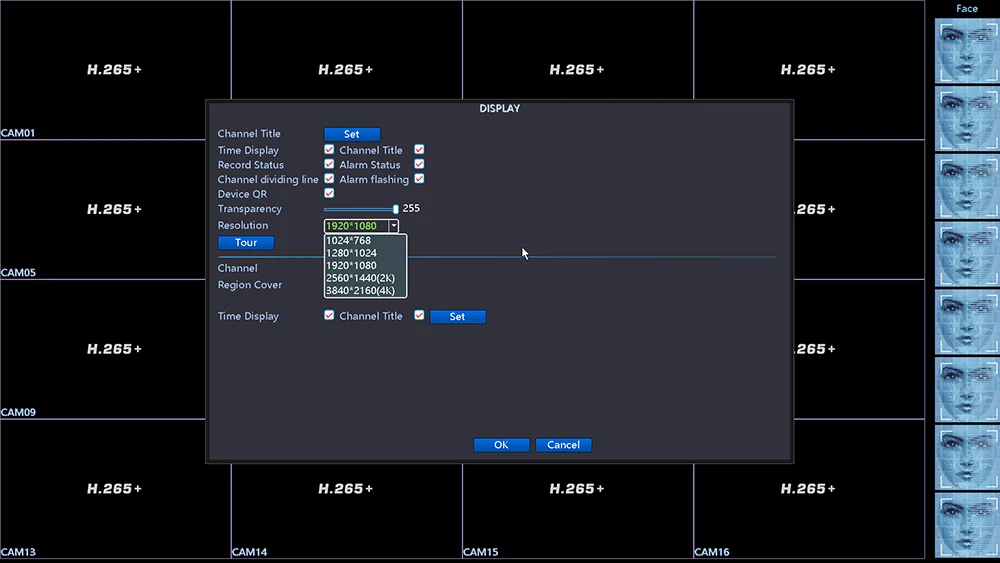

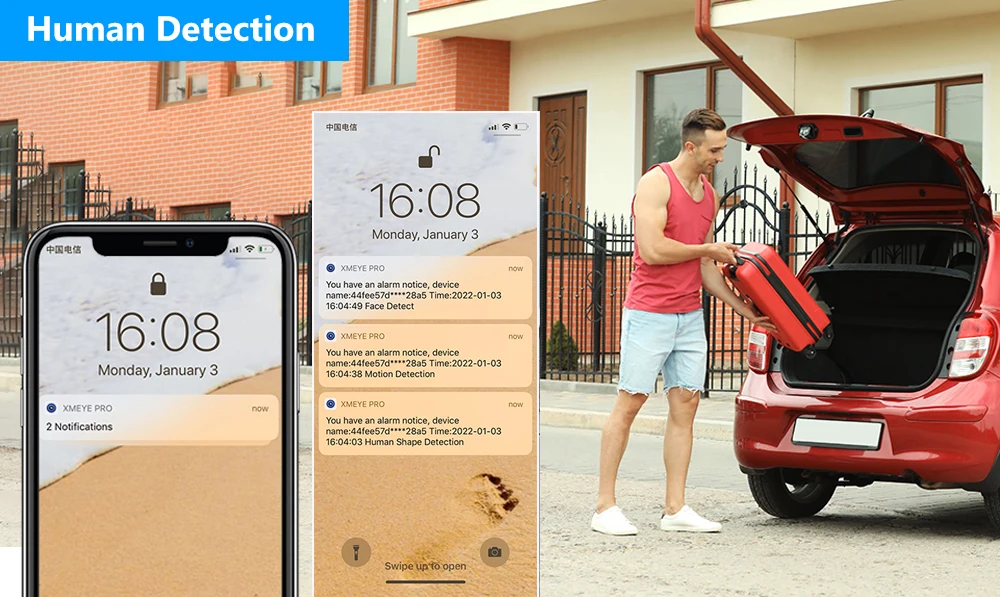

when motion is detected, the DVR can send email(Send message) or start record to the hard disk without missing any important events. 16CH Max Support the 4K Display
8CH Max 2K
4CH Max 1080P

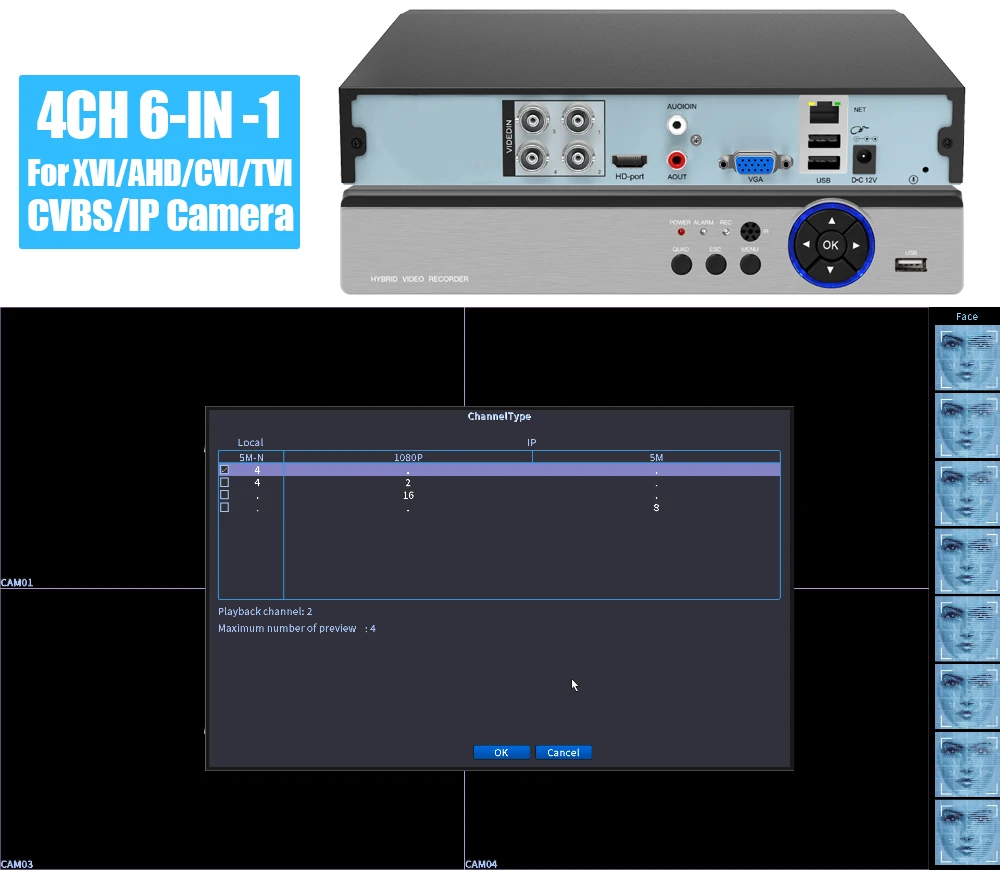

Support AHD 5MP-N Cameras (Please check the attachtion in below sheet) 16CH Digital Menu 8CH Digital Menu 4CH Digital Menu

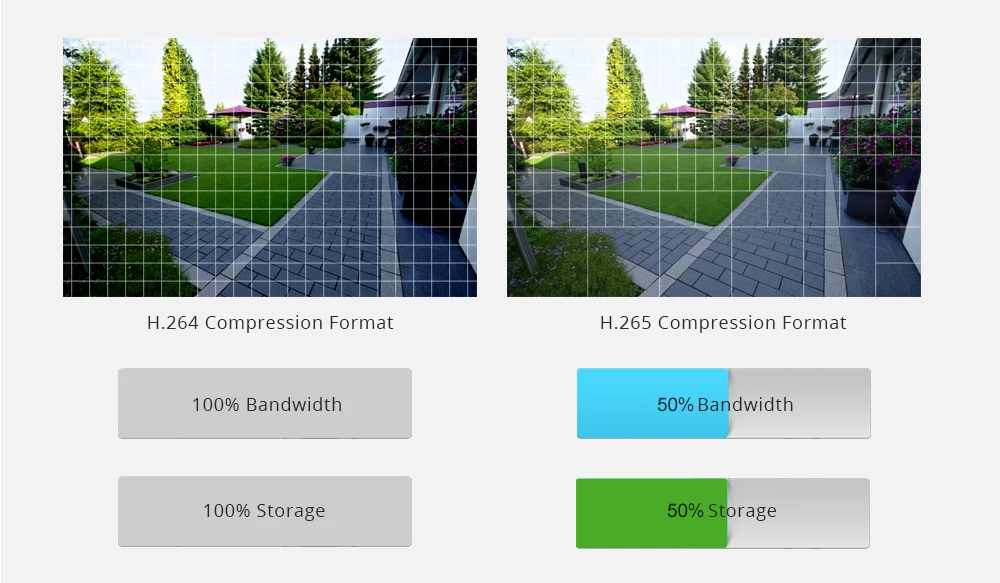

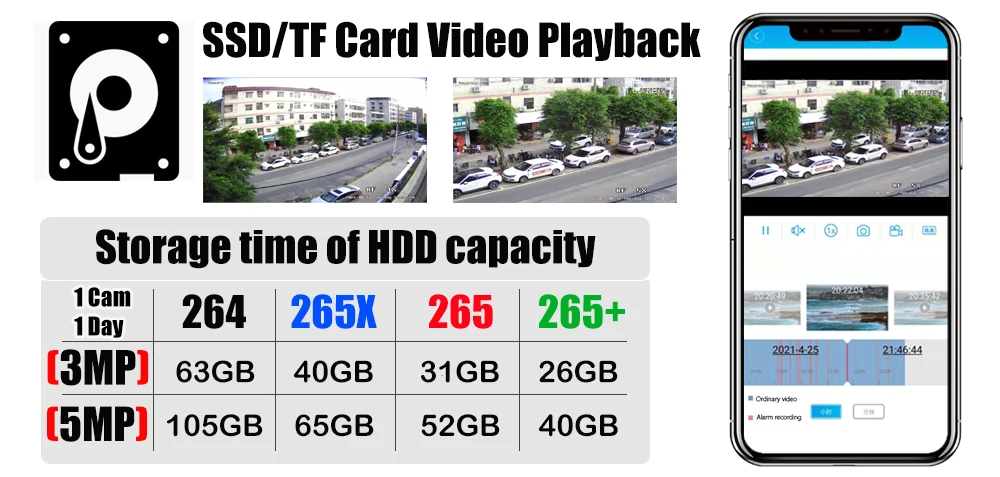

Advanced H.265+ Video Compression

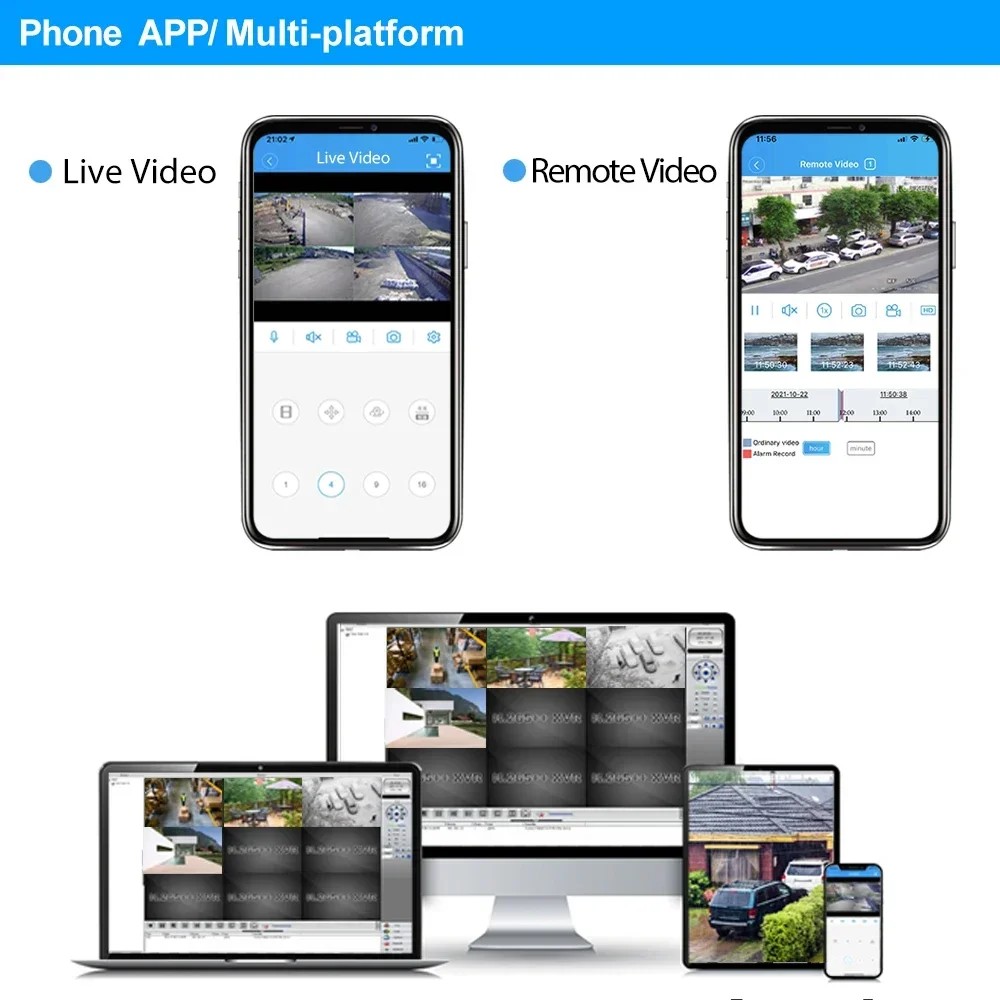

H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265+ video saves around 70% of the bit rate at the same quality of coding. Easy remote access Anytime anywhere

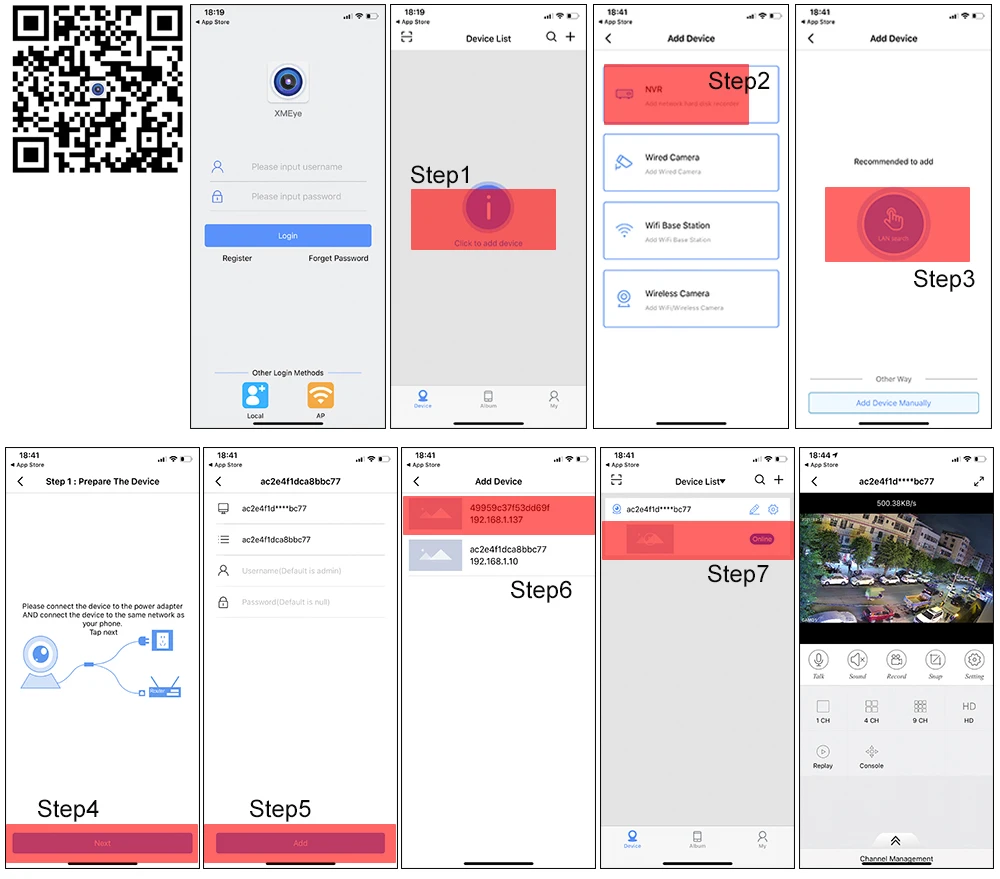

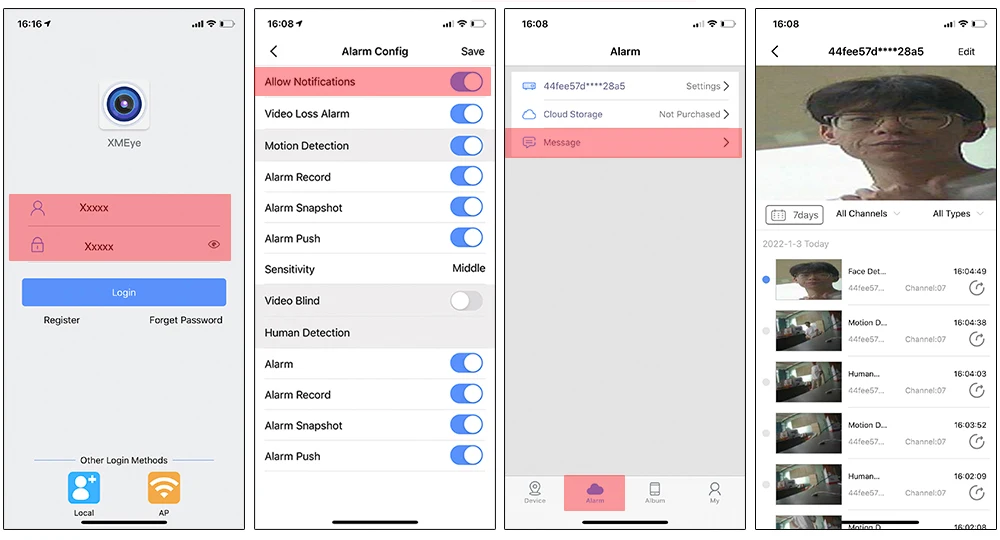

P2P technology supports remote access on the mobile device,Just intall the APP on your phone by scanning the QR cade or storing from the APP View the camera remotely anytime, any where. PC use the www.xmeye.net to visit the camera. 3.5CH HDD SupportWe recommend the Seagate,WD purple,TOSHIBA.(Only support the Security HDD) Product Material For Home Kit Support

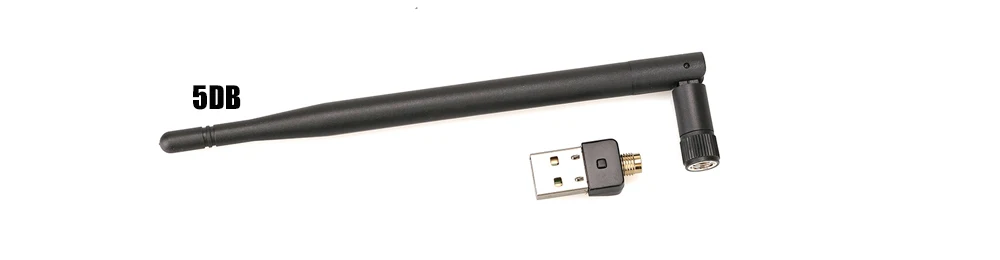

Support 7601 Model Wifi Adapter
This link is not include wifi adapter, if you need, you can press the photo below to buy.
(Below main PCB is for this NVR)

Packing List:

1*DVR

1*Mouse

1*12V2A Adapter

1*Manual

1*Remote Control(No battery)


System
Model
4CH

8CH

16CH

Chip

NT98321

NT98321

NT98323


Preview
1/4/8/9

1/4/8/9

1/4/8/9/16

Video
Video input
4CH BNC

8CH BNC

16CH BNC

Codec
H.265/H.264

H.265+/H.264

H.265+/H.264

Display
Quality
Max 1080P

Max 2K

Max 4K

PreView

Quality

4*5M-N@20fps(6 in 1)

4*4M-N@30fps(6 in 1)

4*1080P(6 in 1)

Default:5M-N

8*5M-N@12fps(6 in 1)

8*4M-N@15fps(6 in 1)

8*1080P@15fps(XVI)

Default:5M-N

16*5M-N@12fps(6 in 1)(XVI)

16*4M-N@15fps(6 in 1)(XVI)

Default:5M-N

Encode

Quality

4*5M-N@20fps(6 in 1)

4*4M-N@30fps(6 in 1)

4*1080P(6 in 1)

Default:5M-N

8*5M-N@12fps(6 in 1)

8*4M-N@15fps(6 in 1)

8*1080P@15fps(XVI)

Default:5M-N

16*5M-N@6fps(6 in 1)(XVI)

16*4M-N@8fps(6 in 1)(XVI)

Default:5M-N

Decode
Quality
2*5M-N@20fps(6 in 1)
2*4M-N@30fps(6 in 1)
2*1080P(6 in 1)
Default:5M-N

8*5M-N@12fps(6 in 1)

8*4M-N@15fps(6 in 1)

8*1080P@15fps(XVI)

Default:5M-N

8*5MP-N@6fps(6 in 1)

8*4MP-N@8fps(6 in 1)(XVI)

Default:5M-N

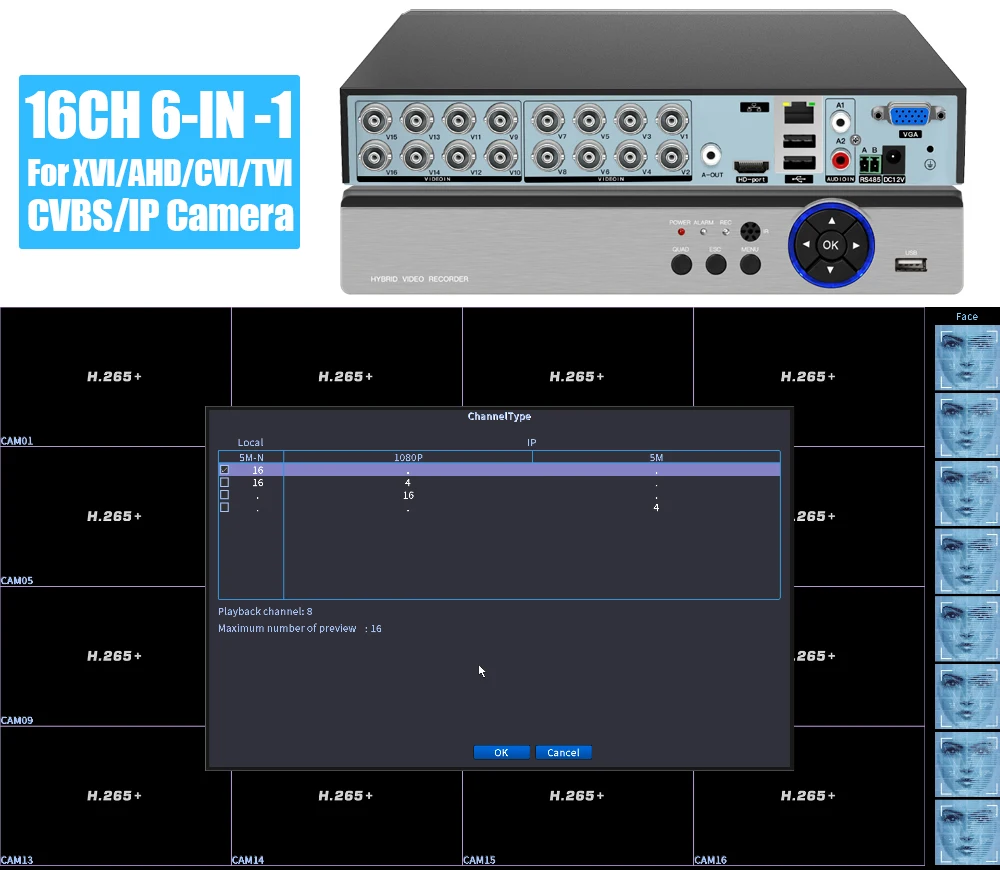

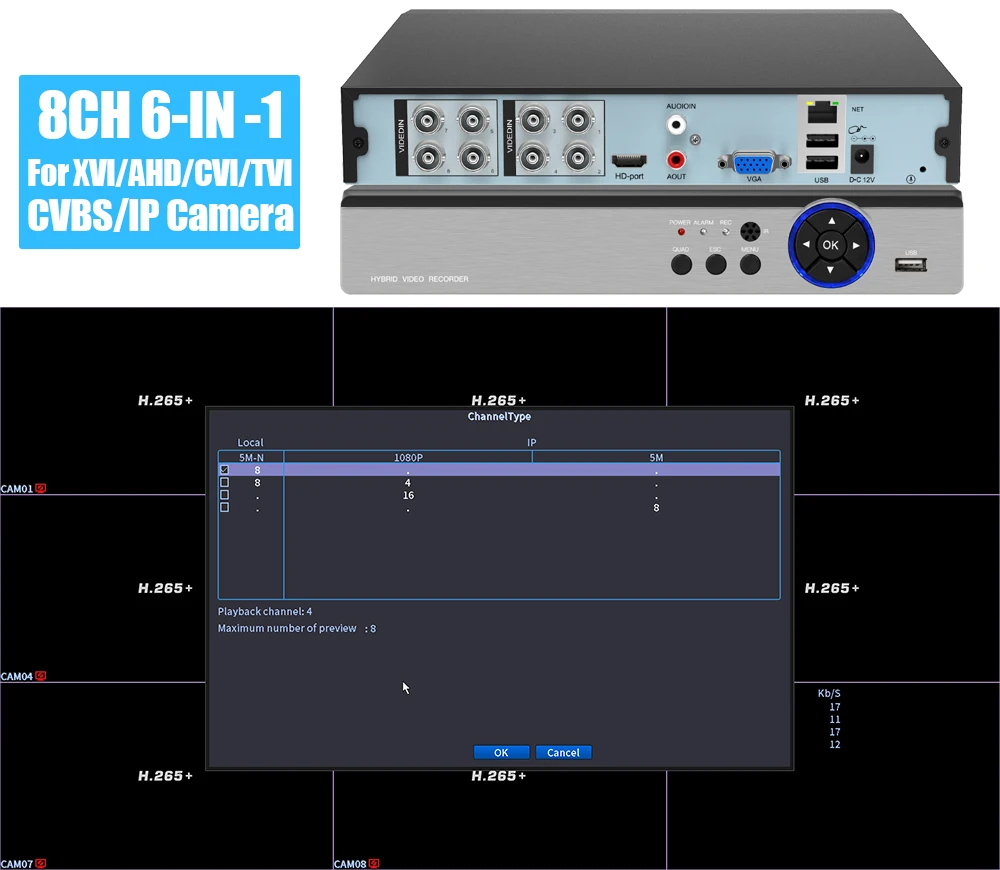

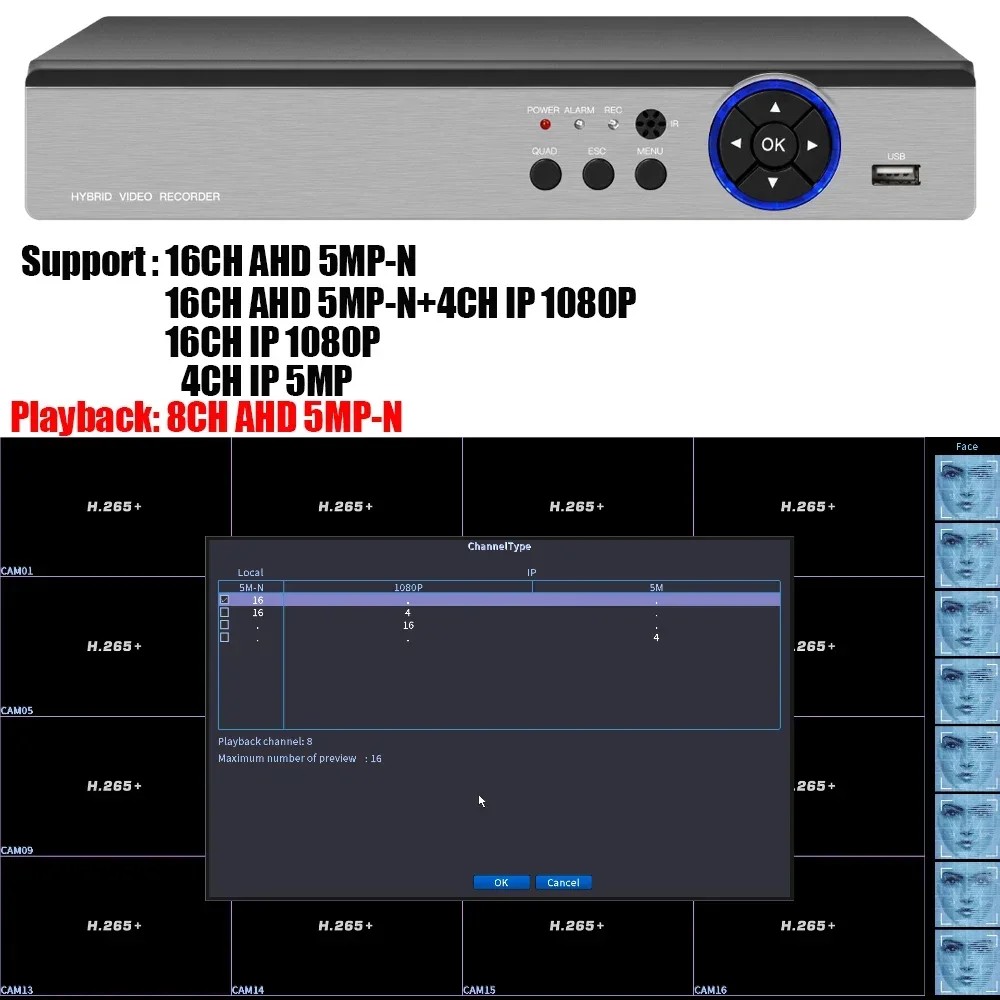

Multi-mode
input
Analog: 4*5M-N
Hybrid: 4*5M-N(analog)+2*1080P(network)
Network: 16*1080P;8*5M

Analog: 8*5M-N

hybrid: 8*5M-N(analog)+1080P(network)

Network: 16*1080P; 8*5M

Analog: 16*5M-N

Hybrid: 16*5M-N(Analog)+4*1080P(Network)

Network: 16*1080P; 8*5MP

Motion
detection
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set
(Limited local channel)
Recording mode
Manual>Alarm>Dynamic Detection>Timing

Audio

Audio

Conpression

711A

Intercom

Support

Record &
Playback
Search mode
Search by time, calendar, event, channel
Local Playback
4CH

8CH

16CH

Backup mode
Network backup, USB hard disk, USB burner, SATA burner
Video output
1ch VGA,1ch HDMI-Compatible HD output
Audio I/O
1/1

1/1

2/1

External interface
3G/WIFI
Support 7601 Adapter (Not include)
Network interface
1*RJ45 10M/100M Adaptive Ethernet port
USB interface
2*USB2.0 ports(Not support the keyboard)
HDD
1* SATA(Up to 14TB for each disk)(HDD is not include,you can choose in the link)
ESATA
Not Support
Power supply
12V/2A
Other
Power Consumption
<10W(Without HDD)
Work environment
Temperature:-20℃-65℃ , Humidity:10%－90%RH , Atm:86kpa－106kp
Dimension
L250*W220*H45mm
Weight
A total of about 1500g

Model

6704/08/16LME
