Main Features:

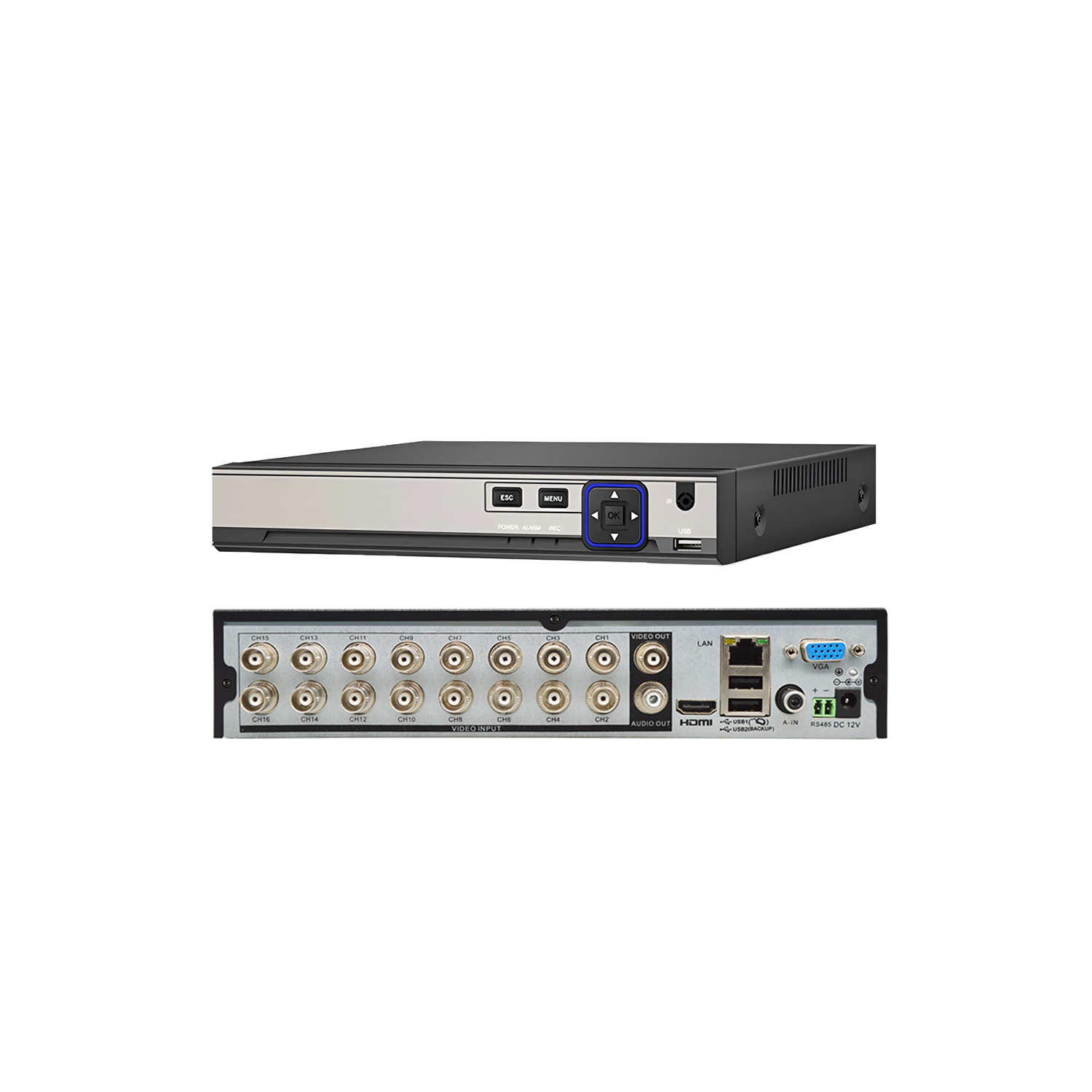

1.H.265 16CH AHD Digital Video Recorder;
2,Ultra HD 4K High Definition Display,Advanced H.265 Video Compression;
3.Support Face Detection,Face Record,Face Playback;
4.Support CVBS,AHD,TVI,CVI ,XVI,IP ,6 in 1 Hybrid input;
5.Support HDMI&VGA Output,Audio Input&Audio Output;
6.Support Ultra HD Day Night Vision;
7.Support 3.5"inch Hard Drive,1*SATA Port,Support Max 1*8TB HDD;
8.Support Motion Detection, Email Alerts, Video Playback,Multi-Language;
9.Support Android,Iphone,Ipad,PC,CMS,VMS,P2P view;
10.Support Plug and Play ,Easy to Setup;
11.Remote Access Anywhere,Anytime;
Package list:
1 X H.265 16CH 4K 6 IN 1 AHD DVR Hybrid Digital Video Recorder;
1 x Power Supply for DVR;
1 X USB Mouse for DVR;
1 X Remote Control for DVR;
Hard Disk optional !!!
Face Detection & Face playback
Face Detection and Face playback and Face Record;Face Detection and Face Playback;Quickly capture face images and quickly play back face videos;Face Detection:automatically capture face images;Face Playback:Intelligent Face video playback,saving time,not missing every details.
4K Super HD Resolution
High-Definition interface output, Suport for online playback, Mobile remote,Multi-window display with 8.0MP Resolution. The angle will be more larger, and the image will be sore clearer.
Motion detection
This system is designed to send an email alert when any motions are detected and allows you to record only when motion is detected.
Support Ultra HD Night Vision
Equipped with high performance infrared LEDs, this camera provides you clear night vision. And with smart IR-Cut filter, day and night vision becomes crisp and vivid.
Why chooses H.265?
H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.
Connection Diagram-Plug and play,Easy to use
The cctv security system is plug and play ,easy to set up,Making lift more easier.Remote viewing anywhere anytime.
6 in 1 Hybrid AHD DVR
You can freely enjoy Six connection modes with this one multi-function digital video recorder.AHD(Analog High Definition)is new advanced technology on home security with 6 recordering modes.for your option:Analog/ AHD/ Network / TVI / CVI / AHD+Network. You can get HD quality video in each mode.
Easy remote view setting
Easy setting , just 4 steps for mobile phone viewing,View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy!!!
Smart Playback
You can easy find the video footage you'd like to playback, Smart playback available with customizable searching area,
playback time is greatly reduced by speeding through unimportant videos.
Real-time P2P viewing
You could use the NVR serial number to realize P2P remote viewing of the camera on your mobile phone or computer(Xmeye APP on the phone, CMS client on PC)
H.265 8CH 4K&8MP DVR Specifications
System
Main processor: Embedded processor
Operating system: Embedded Linux
Video compression:H.265
System resource:Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up
Interface
Operation interface:16bit real color GUI interface support
Preview : 1/4/8/16
Video
Video standard :PAL; NTSC
Image encode:H.265
Monitor quality: VGA,HDMI:High definition
Analog input :16CH*8MP/16CH*5MP
Hybird input: 16CH*8MP(Analog)+4CH*5MP(Network)
Network input: 16CH*5MP /16CH*1080P
Motion detection:Support
Email Alert : Support
Face Detection:Support
Face Smart Playback:Support
Remote Access:Support
Audio
Audio compression :G.711A
Intercom : Yes
Record&Playback
Record mode:manual>alarm>motion detection>timing
Local playback:8MP
Video search:Time, date, event, channel search
Storage&Back up
Video storage : Local HDD ,Network
Back up mode: Network backup, USB portable,HDD,USB imprint,SATA imprint
Interface
Video input: 16CH BNC
Video output : 1ch VGA,1ch HDMI HD output
Loop output : N/A
Audio I/O :1CH input/1CH Output
Alarm I/O:N/A
Network port:1* POE RJ45 1000M self-adaptive Ethernet port;
USB port : 2* USB 2.0
HDD port : 2 SATA ports,max support 2*8TB(HDD is optional)
Other
Power :DC 12V
USB Mouse:included
Remote Control : included
Temperature : -20℃+50℃
Humidity : -10%-90%
Dimension : L255mm* W225mm* H45mm
Weight :1.5KG
DVR Language
Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on
